Home / Enterprise Solutions /

FlexCam IP Video Surveillance Cameras & NVR Systems

FlexCam Video Surveillance: ECO, PLUS & MAX IP Camera Systems

FlexCam cameras are specified by Pixels-Per-Meter, not megapixels alone, so every tier delivers real identification detail instead of just a bigger spec-sheet number. Eco, Plus, and Max cameras record to T-Series NVR storage and connect natively to IBSSweb, tagging every access event to its video automatically.

30 Years · Est. 1996

ISO 9001:2015

bizSAFE Level 3

BCA ME04 (L3) Registered

The optical standard, quantified

What Is Pixels-Per-Meter (PPM), and Why It Beats Megapixel Marketing?

Megapixel counts sell hardware but never guarantee a usable image — a wide-angle 4MP camera can deliver less identification detail than a well-placed 2MP unit on a narrower lens. Pixels-Per-Meter (PPM) measures how many pixels fall across one metre of scene at a given distance, which is what actually determines whether footage holds up as evidence.

The Formula

PPM = Horizontal Resolution (pixels) ÷ Horizontal Field-of-View Width (metres)

Objective	PPM	Operational description
Observation	20–40	General activity or crowd flow in large areas — warehouses, public squares.
Detection	40–80	Presence of a person or vehicle — perimeter approach, car park entry.
Recognition	120–180	Recognizing a known individual's face or familiar objects.
Identification	> 250	Forensic-quality detail — identifying unknown persons or reading plates.

Worked example

A 4MP camera (2,592px horizontal resolution) covering a 10m-wide gate: 2,592 ÷ 10 = 259.2 PPM — Identification-grade. This is why FlexCam tiers are specified by PPM rather than megapixels: an 8MP camera on a wide lens can sit below Detection-grade at range, while a well-placed 2MP unit on a narrow lens clears Recognition-grade at the same distance.

Not every zone carries the same risk

Compare FlexCam Tiers: ECO, PLUS & MAX Cameras

All three tiers share the same Pixels-Per-Meter specification discipline and the same IBSSweb management console, so a mixed estate can run ECO, PLUS, and MAX zones from one screen and one video-tagged timeline.

Observation

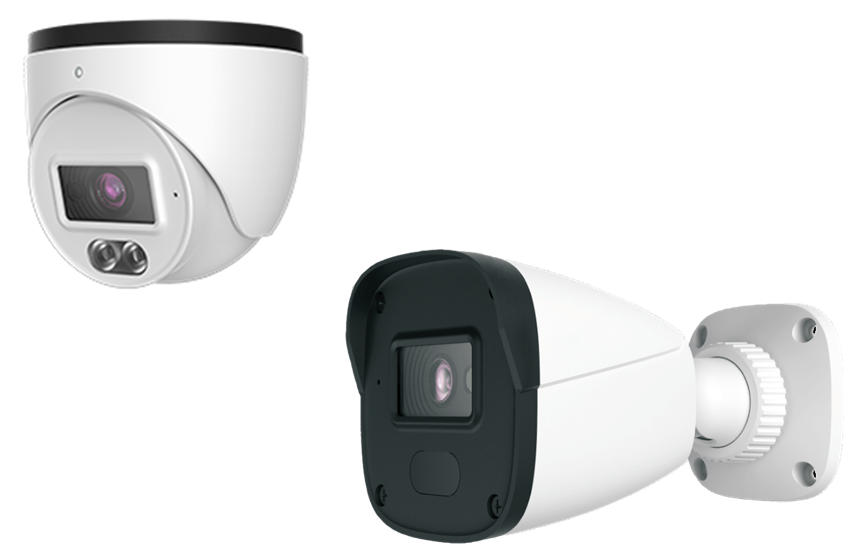

ECO Series

Cost-effective deterrence for small business, retail, and residential sites.

Model

t2251 (Bullet) / t2255 (Dome)

Resolution

2MP (1920×1080), up to 30fps

Lens

3.6mm fixed (2.8mm option)

Low-light

Intelligent Dual Light (colour on detection)

IR range

10–20m

AI analytics

Smart motion, line crossing, region intrusion (human only)

Durability

IP67

Power / audio

DC12V or PoE · built-in mic

Recognition

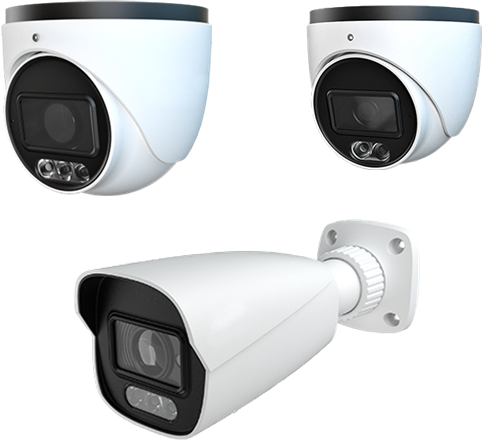

PLUS Series

Commercial-grade clarity for buildings and public spaces.

Model

t5252/t5452 fixed · t5282/t5482 AF bullet

Resolution

2MP or 4MP, up to 30fps, Tri-Stream

Lens

3.6mm fixed or 2.8–12mm motorized AF

WDR

120dB true hardware WDR

IR range

30–50m (bullet) · 20–40m (dome)

AI analytics

Human / vehicle / non-vehicle filters + abandoned-object detection

Durability

IP67

Power / audio

MicroSD up to 256GB · audio in · built-in mic

Identification

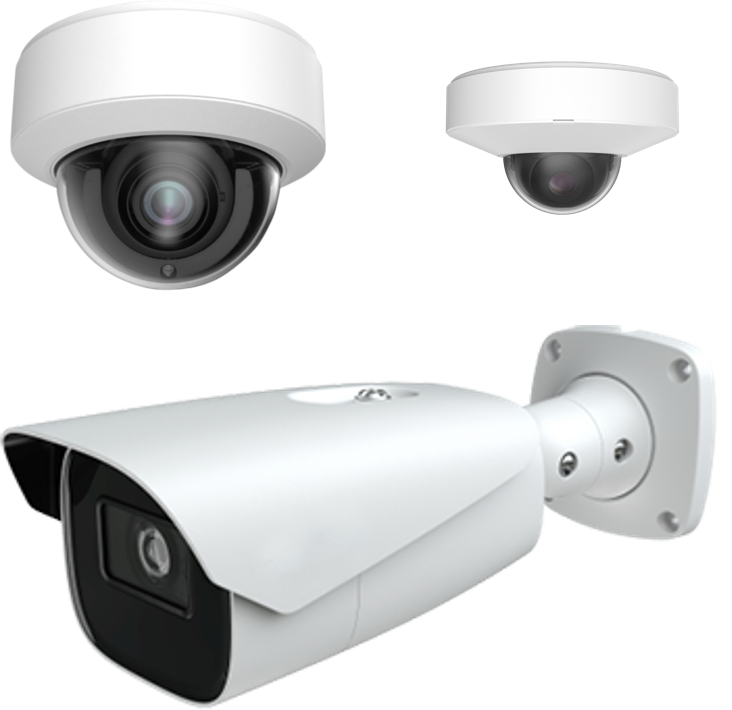

MAX Series

Critical-zone precision for infrastructure and strict identification needs.

Model

t8886 Dome / t8882 Bullet (8MP)

Resolution

Up to 8MP / 4K UHD, 3840×2160

Lens

2.8–12mm motorized AF

Low-light

True day/night + Starlight, 0.006 lux @F1.4

IR range

30–50m (dome) · 50–70m (bullet)

AI analytics

Full suite — face detection, heat mapping, counting, loitering

Durability

IP67 + IK10 vandal-resistant (dome)

Certified

ONVIF Profile S/G/T/M · NDAA compliant

2MP/4MP variants are also available within the MAX tier (t8282/8482, t8257/8457, t8286/8486) for tighter fields of view at a lower cost than the 8MP flagship.

Purpose-built optics for the edge cases

Specialized Cameras: ANPR, THERMAL, PTZ & ATEX Explosion-Proof

General-purpose cameras can’t solve every problem. These four lines are engineered for the specific site conditions that ECO, PLUS, and MAX aren’t built to handle.

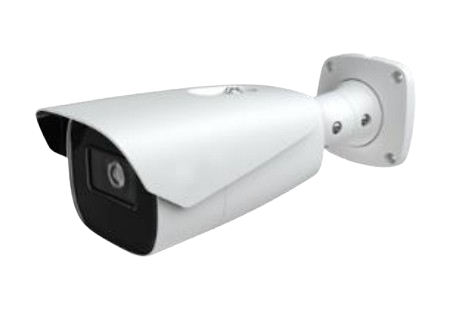

ANPR Bullet — t9282

2MP, 2.8–12mm motorized zoom. Captures plates at speeds up to 50km/h; 10,000-plate onboard database. Native Wiegand output into WebENTRA automates vehicle barriers without a third-party bridge.

Recommended for: parking facilities, logistics gates, toll & border checkpoints.

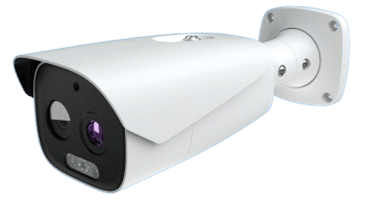

Dual-Spectrum Thermal — t75M+2

5MP optical lens + 384×288 thermal detector. Operates in zero-light, smoke, or fog; fire detection with temperature-exception alarms; simultaneous thermal + optical AI analytics.

Recommended for: oil & gas, perimeter fencing, unlit yards & warehouses.

Speed PTZ — t1499

40× optical zoom, 4.5–180mm motorized lens at 4MP. 350m IR range and auto-tracking analytics follow a target across vast distances without an operator.

Recommended for: airports, ports, city surveillance networks, large campuses & stadiums.

FlexCam Extreme — ATEX-Certified

t6442EX Bullet / t6446EX Dome, 4MP, Ex d IIC T6 Gb / Ex tD explosion-proof rating, IP68, −30°C to +60°C, 316L/304 stainless steel enclosure.

Recommended for: oil & gas, chemical processing, mining.

Recording hardware & storage planning

FlexCam NVR: Recording, Storage & Retention Planning

Five recording tiers, from single-site desktop deployments to 128-channel enterprise recording banks — every tier turns FlexCam footage into a tamper-evident chain of custody.

Model	Max channels	Storage bays	RAID support	Max resolution	Form factor
t016H-1	16	1×10TB SATA	No RAID	Up to 8MP	1U Desktop
t032H-2	32	2×10TB SATA	No RAID	Up to 16MP	1U Rack
t064V-8	64	8×10TB SATA	0, 1, 5, 6, 10	Up to 16MP/8MP	2U Rack
t064E-16	64	16×10TB SATA	0, 1, 5, 6, 10	Up to 16MP	3U Rack
t128E-16	128	16×10TB SATA	0, 1, 5, 6, 10	Up to 16MP	3U Rack

Storage & Retention Calculator

Retention Days = (Storage TB × 8 × 1,000,000) ÷ (Bitrate Mbps × 3600 × 24 × Cameras)

Worked example — retail branch: 16 cameras at 4MP/15fps on a t032H-2 with 2×10TB HDDs (20TB total). Total bitrate: 16 × 3 Mbps = 48 Mbps. Daily storage: 48 × 3600 × 24 ÷ 8 ÷ 1,000,000 ≈ 0.52 TB/day. Retention: 20 TB ÷ 0.52 TB/day ≈ 38.5 days of 24/7 HD recording.

Resolution	Frame rate	Est. bitrate (H.265+)
2MP (1080p)	15 fps	~2 Mbps
4MP	15 fps	~3 Mbps
4MP	30 fps	~4 Mbps
8MP (4K)	30 fps	~8 Mbps

With RAID 6, subtract two drives' capacity before running the formula. Figures reflect medium-complexity scenes with H.265+ compression, per the ASIS FlexCam Video Surveillance Guidebook.

System Analytics Tool

Enterprise Storage & Bandwidth Calculator

Configure system field variables below to estimate exact system network requirements and storage infrastructure baselines.

Bitrate per Camera

0.00 kbit/s

Avg Frame Size

0.00 KB

Total Bandwidth

0.00 Mbit/s

Minimum Disk Space

0.00 TB

For CISOs & system designers

Cybersecurity & Compliance, Tier by Tier

IP cameras are a commonly targeted IoT class. FlexCam’s security posture is built in per tier, not bolted on afterward.

Security feature	ECO Series	PLUS Series	MAX Series
Data / firmware / config encryption	Dome model only	Yes	Yes
HTTPS / TLS encryption	Via protocol support	Via protocol support	Explicit in security spec
802.1X port authentication	Yes	Yes	Yes
Brute-force login protection	Yes	Yes	Yes
IP address filtering	Yes	Yes	Yes
Onboard cloud firmware upgrade	No	No	Yes
ONVIF certification	Generic	Generic	Profile S, G, T, M

The Eco bullet (t2251) ships without the encryption and authentication features listed for the ECO dome (t2255) above.
ANPR (t9282) matches MAX-tier coverage; THERMAL (t75M+2) supports 802.1X and IP filtering only.

Verify, Don't Trust

ASIS Technologies does not currently hold ISO 27001 or SOC 2 certification for FlexCam. Here is what you can verify directly instead:

Coordinated vulnerability disclosure — a published process for researchers and customers to report issues, with committed response and fix timelines.
Standards-aligned engineering — built to meet NDAA and ONVIF Profile S/G/T/M requirements today, with cryptography reviewed against current NIST guidance.
Architecture deep-dive — a guided technical walkthrough of encryption, authentication, and network-segregation design with our own engineers, before you sign.
Buyer-commissioned penetration testing — bring your own testers, or an independent firm of your choosing, to test a deployment before go-live.
NDA documentation pack — detailed architecture and security documentation available under NDA for procurement and security review.

One ecosystem, one audit trail

FlexCam + WebENTRA: One Video-Tagged Audit Trail

FlexCam doesn’t operate as an island. Synchronised with IBSSweb, every physical access event is instantly tagged to its video, converting reactive recording into a proactive, searchable audit trail.

Access Event

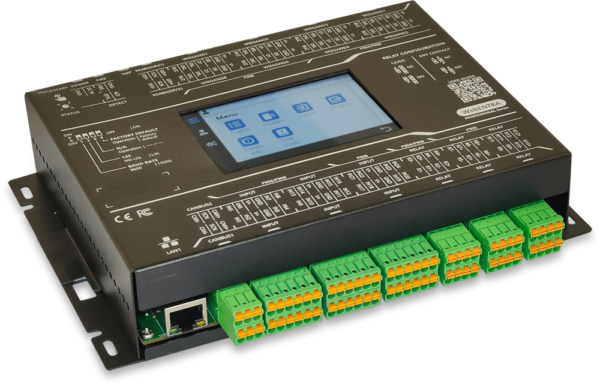

A WebENTRA controller grants, denies, or forces a door event.

Instant Video-Tag

IBSSweb tags FlexCam footage at that door, timestamp-locked.

RAID-Protected Record

The clip and event sit together, protected by NVR RAID redundancy.

Searchable Forensic Trail

Search by person, door, or time — not by scrubbing footage.

This connects two systems into one: an access denial, a forced door, or a barcode scan all resolve to the same searchable, video-tagged timeline. At the enterprise tier, Geutebruck VMS governs this at scale — hot-standby failover, multi-site federation, and compliance controls engineered for the most demanding deployments ASIS Technologies delivers. Learn more about Geutebruck below.

The enterprise command layer

Geutebruck VMS: The Enterprise Standard in Video Management

Geutebruck is a German-engineered video management platform built to the standards that banks, airports, and critical-infrastructure operators require. As the enterprise command layer of the FlexCam ecosystem, it brings global site federation, dual-control governance, and mission-critical continuity to the most demanding deployments ASIS Technologies delivers.

Recording downtime isn't acceptable

Use Geutebruck when losing video during a hardware fault would be a liability, not an inconvenience. Hot-standby recording servers give mission-critical continuity and seamless failover that a standalone NVR doesn't provide.

You operate more than one independent site

Use Geutebruck when a central SOC needs total situational awareness across locations that each run their own recording. Global system federation unifies multiple sites into one view instead of one login per building.

Your industry mandates dual control over footage

Use Geutebruck when regulation requires more than one person to sign off on exporting or viewing sensitive video. The Four-Eyes Principle mandates dual logins, meeting banking and critical-infrastructure compliance standards.

You need centralized identity management

Use Geutebruck when VMS access should follow corporate identity, not a separate login. Direct Active Directory integration enforces password policy and revokes access the moment HR processes an exit.

Basic motion and alarm triggers aren't enough

Use Geutebruck when a deployment needs customized, multi-layered event logic beyond simple triggers. Its complex logic engine lets architects program automated, condition-based responses across the whole estate.

You're already standardizing on IBSSweb

Use Geutebruck when you want enterprise VMS federation without leaving the IBSSweb ecosystem. It's officially supported by the IBSSweb CCTV Integration Module, so video-tagged access works the same way it does with FlexCam NVR.

Geutebruck is the layer ASIS Technologies recommends whenever scale, regulation, or continuity requirements call for enterprise-grade command and control.

Frequently Asked Questions

What is Pixels-Per-Meter (PPM) and how is it calculated?

PPM measures how many pixels fall across one metre of scene at a given distance. It’s calculated as horizontal resolution in pixels, divided by the horizontal field-of-view width in metres. A 4MP camera (2,592px horizontal) covering a 10m-wide gate delivers 259.2 PPM — Identification-grade detail.

Which FlexCam tier do I need: ECO, PLUS, or MAX?

It depends on the risk profile of the zone. ECO suits general observation and deterrence for retail, residential, and small-business sites. PLUS adds recognition-level detail for commercial buildings and public spaces. MAX delivers identification-grade precision for critical infrastructure. Applications needing ANPR, thermal imaging, PTZ, or an explosion-proof rating call for the specialized or EXTREME lines instead.

How long can a FlexCam NVR store footage?

It depends on camera count, resolution, and drive capacity. As a worked example, 16 cameras at 4MP/15fps on a t032H-2 NVR with 20TB of storage retain about 38.5 days of continuous recording. Higher-capacity models such as the t064E-16 (16×10TB, RAID 6) can clear well over 100 days at lower resolutions.

Does FlexCam integrate with WebENTRA access control?

Yes. Through IBSSweb, every WebENTRA access event — a grant, a denial, a forced door — is automatically tagged to the matching FlexCam footage at that door, timestamp-locked, so investigators can search by person, door, or time instead of scrubbing raw footage.

Is FlexCam ONVIF certified and NDAA compliant?

MAX Series cameras are ONVIF Profile S/G/T/M certified; ECO and PLUS carry generic ONVIF conformance. The full FlexCam line is NDAA compliant, and the ANPR camera (t9282) matches MAX-tier security coverage.

Can I commission my own penetration test on a FlexCam deployment?

Yes. ASIS Technologies does not currently hold ISO 27001 or SOC 2 certification for FlexCam, but supports buyer-commissioned penetration testing — bring your own testers, or an independent firm of your choosing, to test a deployment before go-live. An NDA documentation pack and an architecture deep-dive with ASIS engineers are also available.

Where FlexCam is deployed

Industries We Serve

FlexCam’s three-tier structure adapts to the risk profile of each sector — from ECO-tier deterrence to MAX-tier and EXTREME-tier critical-zone coverage.
