Is ASIS Technologies access control hardware compatible with the OSDP standard?

Yes. WebENTRA controllers and KeyENTRA readers support OSDP, the SIA-developed standard published as IEC 60839-11-5, alongside Wiegand and RS485 (ADNET, CLEX) interfaces.

What encryption does SKeyMa use to protect credential data?

WebENTRA R100 Series readers combine the SKeyMa key-management framework with AES-128 and 3DES algorithms, storing secret keys in a Secure Access Module (SAM). SKeyMa is also offered as a tiered service â€” Prime, Corporate, and Private â€” using AES-256.

Why do GoENTRA and WebENTRA list different encryption strengths (AES-256 vs AES-128)?

They protect different layers. WebENTRA R100 Series reader-to-SAM communication uses AES-128 with 3DES. GoENTRA mobile credentials and the higher SKeyMa service tiers use AES-256. Both are current, supported configurations; the appropriate tier depends on deployment risk profile.

Can IBSSweb scale from a single-door installation to a multi-site enterprise deployment?

Yes. IBSSweb scales from a simple access-control-only configuration up to a global, multi-site deployment supporting up to 100,000 users, with automatic server failover for continuous availability.

Does IBSSweb have any known database limitations?

When deployed on SQL Server Express, IBSSweb is subject to that edition's database size ceiling. Administrators must perform periodic data trimming to maintain uninterrupted operation.

What are the four AI pillars inside IBSSweb v5 AI?

PULSE (Predictive System Health), RISK (Credential Intelligence), AOS (Automated Operations), and COG (Cognitive Support).

What certifications does ASIS Technologies hold?

ISO 9001:2015 quality management certification, bizSAFE Level 3, the Progressive Wage Mark, and CE and FCC certification on edge hardware.

Should an enterprise security management system be hosted on-site or in the cloud?

Either can work. On-site hosting, on a physical server or a virtual machine, gives your own IT team full control and suits organizations with highly sensitive data. Cloud hosting shifts server maintenance to a data center and suits organizations that would rather not manage that hardware themselves.

Home / Enterprise Solutions /

Access Control System Integration

Access Control Integration: One Platform for CCTV, Elevators, Visitor Management & Building Automation

CCTV, elevators, visitor management, building automation — one open REST API connects them all to IBSSweb.

30 Years · Est. 1996

ISO 9001:2015

bizSAFE Level 3

BCA ME04 (L3) Registered

What Does Access Control Integration With CCTV Look Like?

Integrating access control with CCTV links every door event to its matching camera recording, so an operator can see what happened the moment an alarm fires — without opening a separate video system.

Every access event — a valid entry, a forced door, a denied card — is tagged to its nearest camera automatically. Operators get a live video pop-up the instant an event happens: up to 4 camera feeds at once, with a queue that holds up to 100 events so nothing gets missed.
Investigations that used to mean manually scrubbing through hours of separate CCTV footage become a search instead — filter by date and time, by device, by camera, or by the event itself (for example, events tied to a specific access card, or a door left open too long).
On the floorplan view, cameras appear as clickable icons — click one for an instant live feed from wherever the operator already is working.

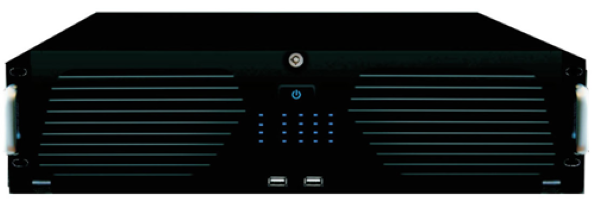

This runs through the IBSSweb CCTV Integration Module, which works with ASIS’s own FlexCam NVR line or with any ONVIF-compliant camera you already own, so existing hardware doesn’t need to be replaced. Geutebruck VMS is natively supported for larger, multi-site deployments.

Can Access Control Integrate With Building Automation Systems?

Yes — access control connects to building automation, including lighting, HVAC, and facilities booking, through IBSSweb’s open REST API. That means these systems can run on the same schedule as who’s actually in the building, instead of being managed separately by hand.

The Web API also connects access control to facilities-booking systems and centralised fault-monitoring and reporting systems, cutting down manual coordination between building teams. See “What Is the IBSSweb REST API?” below for how the API itself is built.

How Does Access Control Integrate With Visitor Management and Time Attendance?

A Visitor Management System handles temporary access for guests and non-permanent staff, working alongside your access control system so a visitor never needs a permanent card.

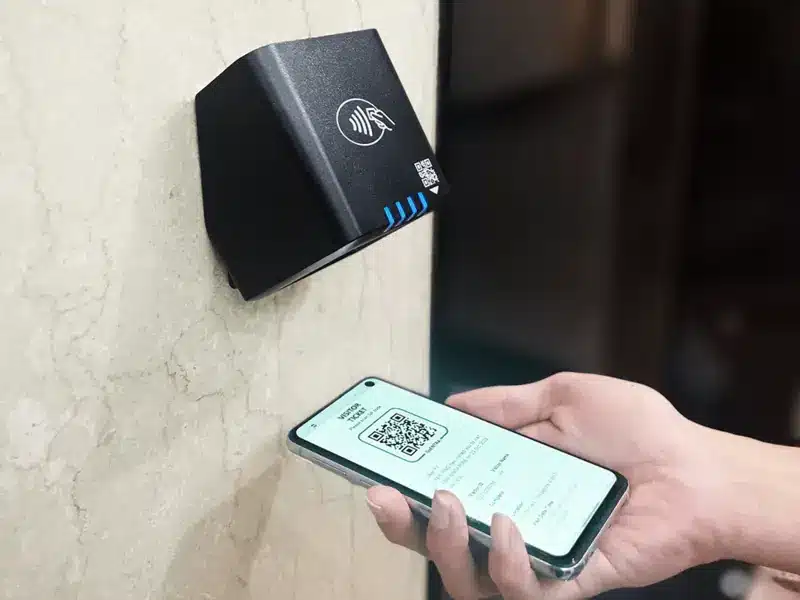

Hosts pre-register a visitor through GoENTRA or IBSSgo; the visitor receives a QR code or an email link ahead of time.
On arrival, the visitor checks themselves in — at the reception counter or a self-service kiosk — using that QR code. Access to the site is then activated with an access card, a QR code, or biometrics (fingerprint, face, or iris), so reception staff don’t need to badge anyone in by hand.
A live camera check against the enrolment photo at the door confirms the visitor is who the pass says, which stops a pass or card from being shared between people.
For staff time attendance, the Time Clock Report module turns the access events your system already records into attendance reports, without separate time-clock hardware.

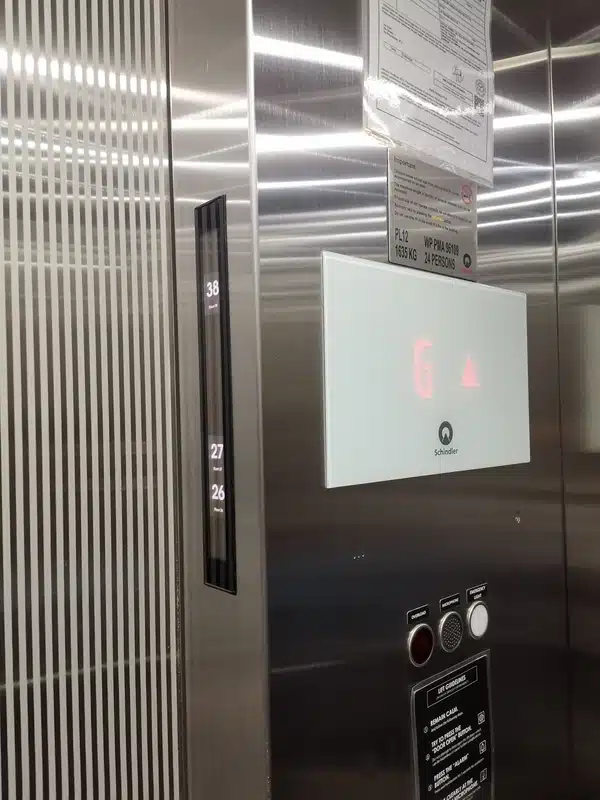

How Do Access Control Systems Integrate With Elevators?

Access control integrates with elevators in one of two ways: lift call, which locks the lift door until an authorized credential is presented at the lobby, or lift access, which only lets a cardholder press the floor buttons they’re actually allowed to reach.

Lift call: the reader sits at the lift lobby, next to the car. The lift door stays securely locked until an authorized person presents their credential.
Lift access: the reader sits inside the lift car itself. Once access is granted, only the floor buttons matching that cardholder’s rights are enabled — every other floor stays unreachable from inside that car.
Both modes run on the same three-step flow: a lobby reader identifies the cardholder, role-based access control returns which floors that person may reach at the current time, and a native API dispatches the car and pre-selects the right floor button — with no separate lift-security console.
This uses a native API to Hitachi, Mitsubishi, and Schindler dispatch systems, so there’s no third-party middleware sitting between access control and the lift.

What Is the IBSSweb REST API, and Who Is It Built For?

The IBSSweb REST API (module name: IBSSweb-API) is the open interface that makes every integration on this page possible. It’s built on JSON over HTTPS, with JWT bearer authentication (a secure digital token that proves a request is authorized, replacing older password-based logins) and documented to the OpenAPI 3.0 standard (a format that lets developer tools read and understand the API automatically) — satisfying three different stakeholders in the same framework instead of forcing a trade-off between them.

For the C-Suite

Open Platform & ROI

No vendor lock-in. Physical security becomes a data asset the rest of the business can use. Two-way data exchange with your ERP and smart-building infrastructure drives ROI across departments, not just security.

For the CISO

Cyber-Physical Security

Strict JSON over HTTPS. JWT bearer tokens replace older login methods. Built-in rate limiting plus an audit log that can't be edited after the fact protects every operational change — zero-trust governance across IT and physical security together.

For B2B Partners

Developer Velocity

A modern developer experience: Swagger UI, OpenAPI 3.0, and Postman/Bruno collections to work from. Real-time webhook alerts (instant notifications the moment something happens) and paginated endpoints mean integrators can scope and deliver complex projects on time.

IBSSweb Integration Architecture, Mapped Out

IBSSweb sits at the centre of every subsystem this page covers — cameras, elevators, visitor management, key cabinets, intercoms, and perimeter detection — all reachable through one open REST API.
