Is ASIS Technologies access control hardware compatible with the OSDP standard?

Yes. WebENTRA controllers and KeyENTRA readers support OSDP, the SIA-developed standard published as IEC 60839-11-5, alongside Wiegand and RS485 (ADNET, CLEX) interfaces.

What encryption does SKeyMa use to protect credential data?

WebENTRA R100 Series readers combine the SKeyMa key-management framework with AES-128 and 3DES algorithms, storing secret keys in a Secure Access Module (SAM). SKeyMa is also offered as a tiered service â€” Prime, Corporate, and Private â€” using AES-256.

Why do GoENTRA and WebENTRA list different encryption strengths (AES-256 vs AES-128)?

They protect different layers. WebENTRA R100 Series reader-to-SAM communication uses AES-128 with 3DES. GoENTRA mobile credentials and the higher SKeyMa service tiers use AES-256. Both are current, supported configurations; the appropriate tier depends on deployment risk profile.

Can IBSSweb scale from a single-door installation to a multi-site enterprise deployment?

Yes. IBSSweb scales from a simple access-control-only configuration up to a global, multi-site deployment supporting up to 100,000 users, with automatic server failover for continuous availability.

Does IBSSweb have any known database limitations?

When deployed on SQL Server Express, IBSSweb is subject to that edition's database size ceiling. Administrators must perform periodic data trimming to maintain uninterrupted operation.

What are the four AI pillars inside IBSSweb v5 AI?

PULSE (Predictive System Health), RISK (Credential Intelligence), AOS (Automated Operations), and COG (Cognitive Support).

What certifications does ASIS Technologies hold?

ISO 9001:2015 quality management certification, bizSAFE Level 3, the Progressive Wage Mark, and CE and FCC certification on edge hardware.

Should an enterprise security management system be hosted on-site or in the cloud?

Either can work. On-site hosting, on a physical server or a virtual machine, gives your own IT team full control and suits organizations with highly sensitive data. Cloud hosting shifts server maintenance to a data center and suits organizations that would rather not manage that hardware themselves.

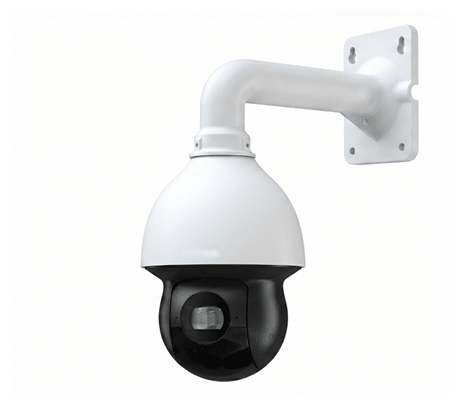

FlexCam Speed PTZ Camera

Its powerful 40x optical zoom lens and 350m IR allow precise identification over vast distances. Its IP66/IK10 aluminum housing ensures durable 24/7 operation in harsh weather.

Deep-learning enables intelligent human/vehicle tracking for automated perimeter security. Utilizing H.265+ compression , it provides an efficient, professional solution for critical infrastructure.

Why Choose the t1499?

Maximized ROI

H.265 technology slashes storage and bandwidth costs by 50%. Deep-learning AI protects assets 24/7 by classifying targets up to 720m. A 10-million rotation life cycle ensures a stable, high-value investment.

Secure Intelligence

NDAA-compliant hardware features HTTPS encryption and 802.1x access control. Robust SDK and ONVIF support ensure seamless integration while adhering to global data protection regulations.

Rapid Deployment

PoE+ support and versatile mounting options simplify site installation. Automated maintenance via heaters and water-removal combined with high-speed tracking significantly reduce labor and maintenance costs.

Performance Without Compromise

40x Ultra-Optical Zoom

Equipped with a powerful 4.5mm–180mm lens, the camera delivers precise identification over large open areas with an impressive 40x optical zoom.

Deep-Learning AI Engine

The advanced AI engine classifies human and vehicle targets at distances up to 720m and can detect up to 17 objects simultaneously.

Long-Range Smart Tracking

Supports autonomous tracking that follows, centers, and zooms in on human or vehicle targets when they intrude into restricted areas.

350m Evidence-Level Night Vision

The IR supplement light covers distances up to 350m, capturing clear human behavior and court-level evidence even in total darkness.

True Day/Night IR Cut Filter

A removable absorptive filter ensures vivid, accurate colors during the day and maximum light sensitivity for clear monochrome imaging at night.

Perimeter Protection & VCA

Integrated Video Content Analytics (VCA) include tripwire, illegal intrusion, and region entrance/exiting detection to secure critical boundaries.

Industrial-Grade Protection

Designed for 24/7 harsh weather operation with an IP66/IK10 rated housing and 6000V lightning and surge protection.

Active Environment Management

Features built-in electric heaters, fans, and a specialized water-removal function that uses quick spinning to clear droplets from the lens.

Deployment Scenarios

Critical Infrastructure & Perimeters

Secures airports and industrial parks using AI to classify humans/vehicles up to 720m and trigger automated tracking.

Transportation & Traffic Monitoring

Monitors expressways and stations with ultra-fast 420°/s pan speeds and 40x optical zoom to track 17 objects per scene.

Large Public Venues

Provides 2K UHD coverage for parks and stadiums, capturing evidence-level detail in darkness via 350m IR illumination.

Urban Safety & Public Squares

Monitors city squares and high-density zones using face detection for up to 17 targets per scene with forensic clarity.

Specifications	t1499
Visible Light Module
Image Sensor	1/2.8″ progressive scan CMOS image sensor, with BSI and NIR++ Dual Gain
Max. Resolution	4MP (2560 x 1440)
Optical Zoom	40x (4.5mm to 180mm)
Field of View (H x V)	Horizontal: 59.1°~ 1.8°; Vertical: 38.4°~ 1.1°; Diagonal: 68.9°~2.1°
Min. Illumination	Color: 0.005 Lux @ (F1.2, AGC ON); B/W: 0.001 Lux; 0 Lux with IR
Night Vision	850m IR distance
PTZ Performance
Pan / Tilt Range	360° Endless / -25° to 155° (auto flip)
Manual Speed	Pan: 0.1°/s – 390°/s, Tilt: 0.1°/s – 270°/s
Presets & Memory	360 Presets; Power-off memory supported
Automation	8 cruises (16 presets each), 4 traces, and scheduled tasks
Intelligence & Analytics
Target Classification	Deep-learning engine for human and vehicle detection and tracking
Behavior Analysis	Tripwire, intrusion, region entrance, and region exiting detection
General Alarms	Motion detection, video tampering, and exception alarms
Video & Audio
Compression	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Stream Performance	3 Streams – Main stream up to 2560×1440 @ 50fps; Sub stream up to 704×576 @ 50fps; Third stream up to 1920×1080 @ 30fps
Audio Interface	1CH Input / 1CH Output (G711A/U)
Storage	Built-in Micro SD slot (up to 256GB)
Physical & Environmental
Power Input	DC24V or PoE+ (IEEE802.3at, type 2)
Power Consumption	Max 23.5W (with IR)
Installation	Wall mounting (L-shape pole included), Corner/Pole/Ceiling(Pendant) mount*
Dimensions	Ø302 x 197 mm
Weight	Approx. 3kg
Protection	IP66 Weatherproof; IK10 Vandal-resistant; 6KV Surge
Working Environment	-40°C to 70°C, Humidity ≤95%

* Optional pole is required for ceiling mount or other type of installation. Contact Sales Team more information.

Datasheet

Model No.	Description
t1499	FlexCam 4MP 40X 5” Speed PTZ IP Camera
