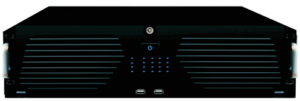

t-Series Network Video Recorder (NVR)

128ch/64ch t-Series Network Video Recorders
– H.264 / H.265 High Profile Compression
– 8x/16x SATA HDD (max 8TB ea) with RAID 0/1/5/6/10 Support
– 16ch Simultaneous Playback
– Support VCA features with t-series cameras (t 064V-8 only)

Clear
Enquiry
t-Series Network Video Recorder (NVR)
t-Series Network Video Recorder (NVR)
t-Series Network Video Recorder (NVR)

Key Features

  • 128/64ch 8MP, 5MP, 4MP, 3MP, 1080p, 960p and 720p Video Inputs
  • H.264 / H.265 High Profile Compression
  • 1x HDMI (4K), 1x HDMI (FHD) & 1x VGA (FHD) Outputs
  • Dual Gigabit Ethernet
  • 8x SATA HDD (max 8TB ea) with RAID 0/1/5/6/10 Support
  • 16ch Simultaneous Playback
  • ONVIF, RTSP & wide range 3rd Party Camera Support
  • Rack Mountable 2U / 3U Housing
  • Support VCA features with t-series cameras (t 064V-8 only)
Specifications* t128E-16 t064E-16 t064V-8
Camera Inputs 128ch 64ch 64ch
Video Compression H.265, MJPEG
Image Resolution 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
CPU Arm Cortex A17
Operating System Linux OS
Recording Bandwidth  320 Mbps
Network Bandwidth 384 Mbps 320 Mbps 320 Mbps
Dual Gigabit Ethernet Yes
Protocol ONVIF, RTSP, TCP/IP, PPPoE, DHCP, DDNS, UPnP, NTP, SMTP
Live View** 1080p@ 128fps; HD, D1@ 384fps
Recording** UHD @ 640fps; 1080p@ 1920fps; HD, D1 @ 1920fps
USB Interface 2 x Front, 1 x Rear USB Ports  2 x Front, 1 x Rear USB Ports  1 x Front, 2 x Rear USB Ports
Storage Capacity 16 x 8TB HDD, 1 x eSATA HDD 16 x 8TB HDD, 1 x eSATA HDD 8 x 8TB HDD, 2 x eSATA HDD
RAID (Optional) RAID 0/1/5/6/10
Multi-Display Extend(Fix / Dwell)
Video Output 1 of VGA (Full HD), 1 of HDMI (up to 4K), 1 of HDMI (up to Full HD)
Audio Input/ Output 128x Camera audio input (via network), 1x RCA Input, 1x RCA Output 64x Camera audio input (via network), 1x RCA Input, 1x RCA Output 64x Camera audio input (via network), 1x RCA Input, 1x RCA Output
Alarm Input/ Output 8 x inputs / 4 x outputs
Recording Mode Continuous, Schedule, Alarm, Pre/ Post Alarm, Audio, Overwrite, Expiration Period
Remote Viewer CMS, Internet Explore, Safari, Chrome, Android, iOS
Rack Mount Housing 3U 3U 2U
Power (VDC / MAX) 100—240 VAC / 250W 100—240 VAC / 250W 100—240 VAC / 250W
Dimensions (WxHxD mm) 437 x 143 x 483 437 x 143 x 483 430 x 89 x 453
Operating Temperature -10°C ~ 50°C
Operating Humidity Up to 90% RH

*Specifications are subject to change without prior notice.

Model No. Description
t128E-16 t-Series 128ch 8MP NVR with 16 HDD
t064E-16 t-Series 64ch 8MP NVR with 16 HDD
t064V-8 t-Series 64ch NVR with 8 HDD
