IBSSweb Web-Based Enterprise Security Management Software

The IBSSweb is a browser based security management system software that provides scalability from access control only applications to a comprehensive suite of fully integrated security solutions.

Clear
Enquiry
IBSSweb Security Management Software
IBSSweb Security Management Software
IBSSweb Dashboard
IBSSweb Advance Audit Report
IBSSweb Roll Call Report
Report Generator
CCTV Integration

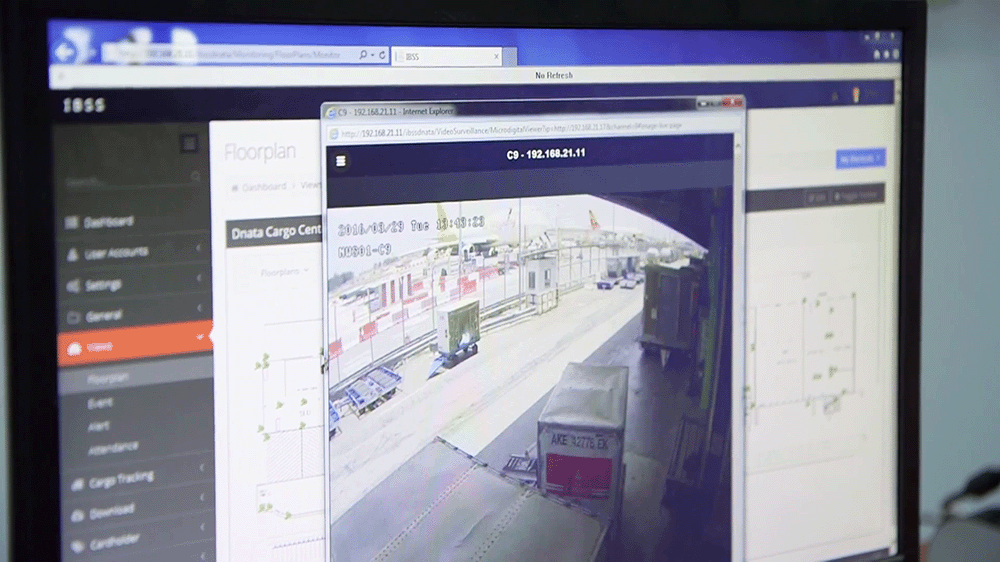

Floorplan
Floorplan with CCTV Integration

The IBSSweb is a browser based security management system software that is truly scalable, from any access control only application and expanding to a comprehensive suite of fully integrated security systems solution.

A highly robust enterprise software, the IBSSweb is built with more than 20 years of experience. It provides seamless integration of access control, intrusion and CCTV surveillance systems for effective and efficient security control center and command.

Optional modules include Single Sign-On (SSO), server failover, visitor management, biometric enrolment, HR Database synchronization and Web API, etc. allow optimized connectivity with many 3rd party systems for truly enterprise operations.

operation

  • Enterprise security management for enterprise deployment
  • Comprehensive access management for doors/gates, elevators, pedestrian turnstiles and vehicle barriers
  • Unlimited card IDs per cardholder, each card ID with unique validity and access rights
  • Unlimited User Access Levels for system operators with drill down to each access level for viewing, adding, deleting,
  • modifying and downloading
  • Access rights management for operators by User Security Level and Security Area
  • Built-in Card Designer with user definable card design template
  • Report generator for quick access to audit, time clocking and roll call reports

Integration

  • Integrated biometric enrolment for fingerprint and Iris recognition
  • Integrated IP CCTV surveillance with live video, automatic pop-up video and intelligent video search
  • Fully integrated Visitor Management System allowing visitor rights assignment based on purpose of visit
  • Built-in industry standard web service allows integration to 3rd party systems
  • Integration to SKeyMa for enhanced security to counter card cloning and hacking
  • Integration to 3rd party HR database for automatic enrolment of cardholders



System

  • HTML5 compliant web client
  • SSO (single sign-on) with support for LDAP and Active Directory
  • Highly scalable and secured MS SQL server database
  • Built-in automatic failover IBSSweb server redundancy capabilities
Specifications EXP STD S01 S02 PRO P01 P02 ENT E01 E02
Description Express Standard Professional Enterprise Ultimate Edition
Edition Package 1 Package 2 Edition Package 1 Package 2 Edition Package 1 Package 2
Simultaneous Connections 1 2 2 2 5 5 5 Unlimited Unlimited Unlimited Unlimited
Credentials 10 250 500 750 1000 2000 3000 2000 3000 5000 Unlimited
Readers (max) 2 20 (60) 30 (60) 40 (60) 60 (200) 80 (200) 100 (200) 100 (2000) 150 (2000) 200 (2000) 2000 (2000)
Floorplans 1 5 5 5 10 10 10 Unlimited Unlimited Unlimited Unlimited
Multi Lift Group (max) No 255 255 255 255 255 255 255 255 255 255
Event Logs (max) 45 days Unlimited Unlimited Unlimited Unlimited Unlimited Unlimited Unlimited Unlimited Unlimited Unlimited
Security Level 1 2 2 2 5 5 5 Unlimited Unlimited Unlimited Unlimited
Security Area No No No No 2 2 2 Unlimited Unlimited Unlimited Unlimited
Browser UI Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Card Designer/ Card Printing Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Standard Report Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Basic Audit Report Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Add-on Modules
Report Generator No No No No Yes Yes Yes Yes Yes Yes Yes
Advanced Audit Report No No No No Optional Optional Optional Yes Yes Yes Yes
Time Clocking Report No No No No Optional Optional Optional Yes Yes Yes Yes
Roll Call/ Mustering No No No No Optional Optional Optional Yes Yes Yes Yes
Messaging Gateway No No No No Optional Optional Optional Optional Optional Optional Optional
Web API No No No No Optional Optional Optional Optional Optional Optional Optional
SSO/LDAP/
AD		 No No No No Optional Optional Optional Optional Optional Optional Optional
Server Failover No No No No Optional Optional Optional Optional Optional Optional Optional
HR Database Integrator No No No No Optional Optional Optional Optional Optional Optional Optional
Video Integration (ASIS NVR) 2 16 (32) 16 (32) 16 (32) 32 (128) 32 (128) 32 (128) 64 (512) 64 (512) 64 (512) 64 (512)
Video Integration (3rd Party) No Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional
Visitor Management System No No No No Optional Optional Optional Optional Optional Optional Optional
Prerequisite
Server Hardware (CPU / RAM) Intel i5 2GHz / 16GB Intel i5 2GHz / 16GB Intel i5 2GHz / 16GB Intel i5 2GHz / 16GB Intel Xeon 2C 2GHz / 24GB Intel Xeon 2C 2GHz / 24GB Intel Xeon 2C 2GHz / 24GB Intel Xeon 4C 2GHz / 32GB Intel Xeon 4C 2GHz / 32GB Intel Xeon 4C 2GHz / 32GB Intel Xeon 8C 2GHz / 48GB
VM (vCore / RAM) N/A N/A N/A N/A 2 vCore / 24GB 2 vCore / 24GB 2 vCore / 24GB 4 vCore / 32GB 4 vCore / 32GB 4 vCore / 32GB 8 vCore / 48GB
Operating System Win 10 Pro Win 10 Pro Win 10 Pro Win 10 Pro Win Server 2016 Win Server 2016 Win Server 2016 Win Server 2016 Win Server 2016 Win Server 2016 Win Server 2016
SQL SQL Server 2017 Express SQL Server 2017 Express SQL Server 2017 Express SQL Server 2017 Express SQL Server 2017 Standard SQL Server 2017 Standard SQL Server 2017 Standard SQL Server 2017 Standard SQL Server 2017 Standard SQL Server 2017 Standard SQL Server 2017 Standard

*Specifications are subject to change without prior notice

Datasheet: https://www.asis-technologies.com/datasheets/software-datasheets/

Model No. Description
IBSSweb-EXP IBSSweb Express
IBSSweb-STD IBSSweb Standard Edition
IBSSweb-S01 IBSSweb Standard Package 1
IBSSweb-S02 IBSSweb Standard Package 2
IBSSweb-S/CR Credential Add-On to IBSSweb-STD : Add-On Credential Pack (50s)
IBSSweb-S/RD Reader Add-On to IBSSweb-STD : Add-On Reader (ea)
IBSSweb-PRO IBSSweb Professional Edition
IBSSweb-P01 IBSSweb Professional Package 1
IBSSweb-P02 IBSSweb Professional Package 2
IBSSweb-P/CR Credential Add-On to IBSSweb-PRO : Add-On Credential Pack (50s)
IBSSweb-P/RD Reader Add-On to IBSSweb-PRO : Add-On Reader (ea)
IBSSweb-ENT IBSSweb Enterprise Edition
IBSSweb-E01 IBSSweb Enterprise Package 1
IBSSweb-E02 IBSSweb Enterprise Package 2
IBSSweb-E/CR Credential Add-On to IBSSweb-ENT : Add-On Credential Pack (50s)
IBSSweb-E/RD Reader Add-On to IBSSweb-ENT : Add-On Reader (ea)
IBSSwebX IBSSweb Ultimate Edition
Optional Modules
IBSSweb-RPG IBSSweb Report Generator
IBSSweb-AAR IBSSweb Advanced Audit Report
IBSSweb-TCR IBSSweb Time Clocking Report
IBSSweb-RCR IBSSweb Roll Call Report
IBSSweb-SMS IBSSweb Messaging Gateway
IBSSweb-API IBSSweb Web API
IBSSweb-ADS IBSSweb Active Directory Service
IBSSweb-SFO IBSSweb Server Failover Service
IBSSweb-HRD IBSSweb HR Database Integrator
IBSSweb-CAM IBSSweb CCTV Integration – Add-On Camera Connection (8s)
IBSSweb-VMS IBSSweb Visitor Management System
IBSSweb-VEC IBSSweb VMS Additional Client License
