FlexCam Eco Series

FlexCam Eco 2MP Fixed Bullet & Dome IP Cameras
– Intelligent IP Cameras with analytics
– 2MP (1920 x 1080) max resolution, @30fps
– Smart Motion Detection (SMD) for human only
– 1/3″ CMOS Sensor, 0.02 lux @F2.2

FlexCam Eco 2MP Fixed Dome IP Camera
FlexCam Eco 2MP Fixed Dome IP Camera
t2255
FlexCam Eco 2MP Fixed Dome IP Camera

Key Features

  • H.265+/H.265/H.264+/H.264/MJPEG Compression
  • Intelligent dual light with AI human detection, switching from B/W image to color
  • Digital WDR, Dual Streams
  • IP67 ingress protection and with Built-in PoE & Mic in
  • Basic analytics for line crossing, region intrusion and video exception

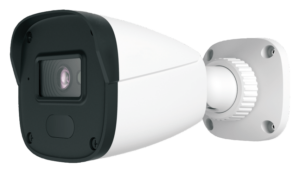

FlexCam ANPR 2MP Bullet IP Camera
Specifications*t2255t2251
DescriptionFlexCam Eco 2MP Fixed Dome IP CameraFlexCam Eco 2MP Fixed Bullet IP Camera
Image Sensor1/3″ CMOS Sensor
Image SettingsROI / Saturation / Brightness / Hue / Contrast / Wide Dynamic / Image Flip / Image Mirror / Sharpness / NR
Resolution2MP
Effective Pixels1920 (H) x 1080 (V)
Electronic Shutter Speed1/3sec – 1/100,000sec
Minimum Illumination0Lux (IR = On), 0.02 lux @F2.20Lux (IR = On), 0.0462 lux @F2.2
Recording ModeNVR / NAS / CMS / Web
Wide Dynamic RangeDigital WDR
VCARegion Intrusion, Line Crossing, Smart Motion (Filter by
different types of target) Detection		Region Intrusion, Video Blur, Scene Change, Abnormal
Color, Line Crossing Detection
Lens  3.6mm Fixed Lens (Option for 2.8mm Lens: t2245)3.6mm Fixed Lens (Option for 2.8mm Lens: t2241)
IR Range10m to 20m
White Light Range10m to 20mNo
Video CompressionH.265+ / H.265 / H.264+ / H.264 / MJPEGH.265+ / H.265 / H.264+ / H.264
Audio InputBuilt-in Mic
StorageNo
Frame RateMain Stream : 60Hz : 1080P / 720P ( 1 ~ 30fps ), 50 HZ : 1080P / 720P ( 1 ~ 25fps )

Sub Stream    : 60Hz : D1 / VGA / 480×240 / CIF ( 1 ~ 30fps ), 50Hz : D1 / VGA / 480×240 / CIF ( 1 ~ 25 fps )

Main Stream : 60Hz : 1080P / 720P ( 1 ~ 30fps ), 50 HZ : 1080P  / 720P ( 1 ~ 25fps )

Sub Stream    : 60Hz : D1 / VGA / CIF ( 1 ~ 30fps ), 50Hz : D1 / VGA / CIF ( 1 ~ 25 fps )

ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, 802.1x, HTTPUDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPs, QoS
InteroperabilityONVIF
PowerDC12V / PoE (IEEE 802.3af), <5WDC12V / PoE (IEEE 802.3af), <4W
Weight0.42 kg0.24 kg
DimensionsØ 94.6mm × 82.8mm (H)162.1mm (L) x 74.8mm (W) x 73.8mm (H)
Operating Conditions-30°C ~ +65°C, Humidity 95% RH max.-20°C ~ +55°C, Humidity 95% RH max.

*Specifications are subject to change without prior notice

Datasheet
Model No.Description
t2255FlexCam Eco 2MP Fixed Dome IP Camera (Option for 2.8mm Lens: t2245)
t2251FlexCam Eco 2MP Fixed Bullet IP Camera (Option for 2.8mm Lens: t2241)
