WebENTRA Compact Series IP Access Controller

Suitable for small and medium offices which it a cost effective controller. Offers in a single package, support for up to 2 doors (or 4 readers) and powered by PoE+.

Clear
Enquiry
C302
C302

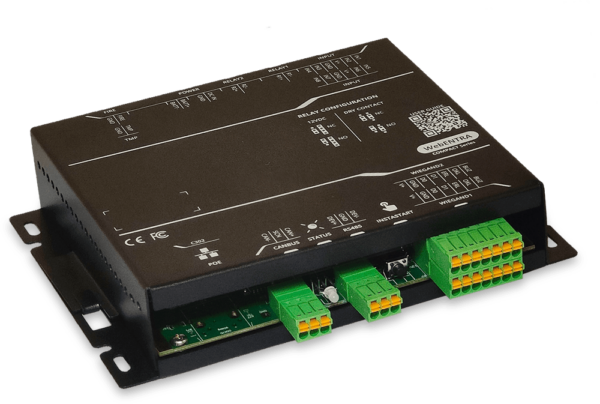

C312
C302 Top View

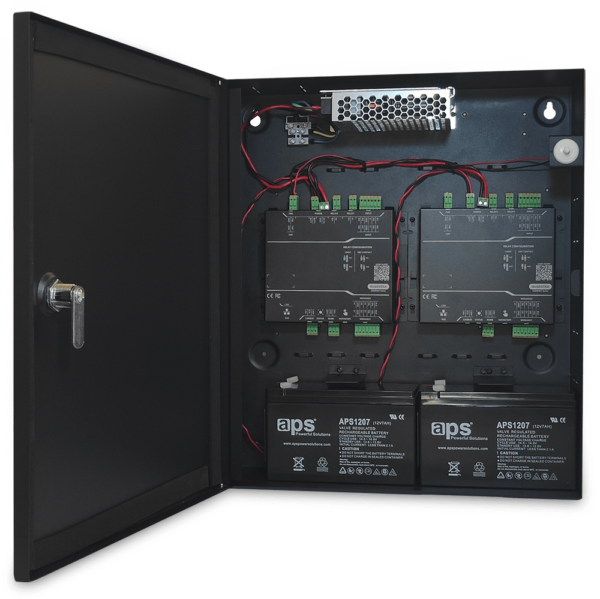

C302K1 with C312

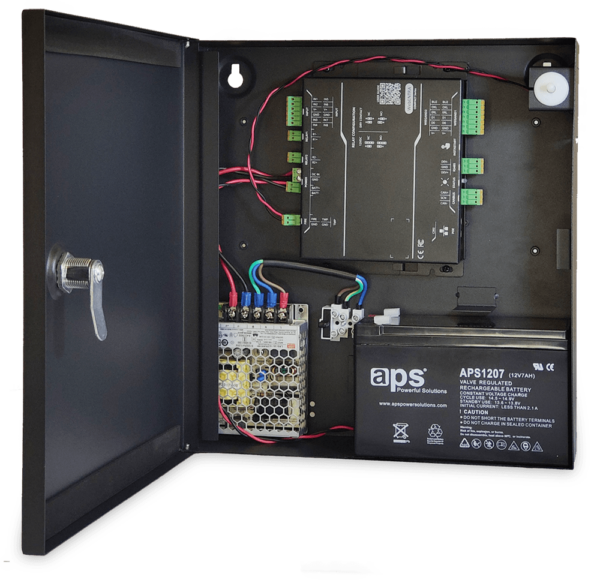

C302G1

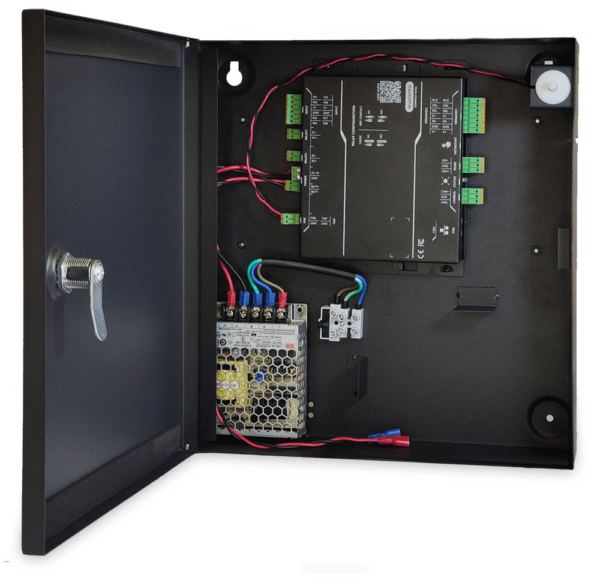

C302G2

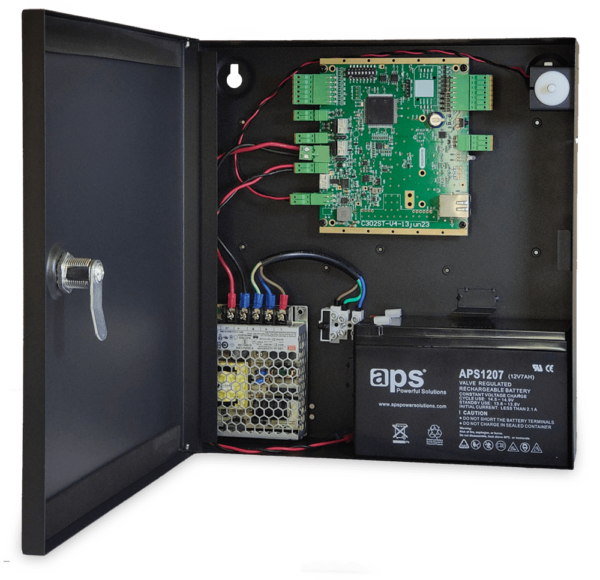

C302PG1

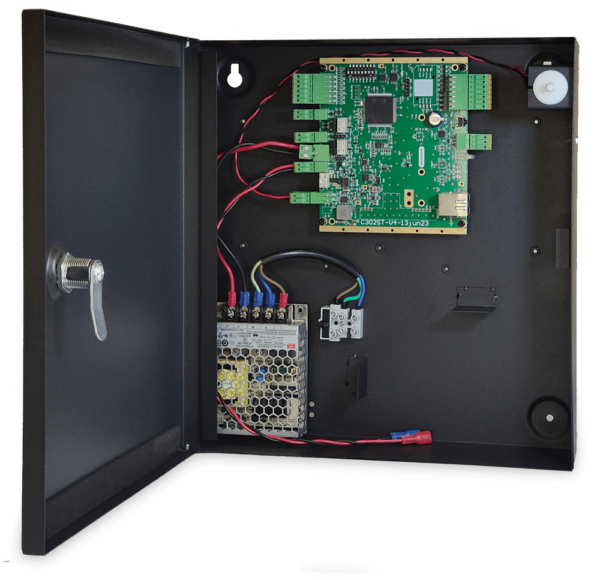

C302PG2

The WebENTRA Compact Series offers a cost-effective, web-based, modular access control solution. The WebENTRA C302ST is a compact controller that supports up to 2 doors (4 readers) and can be fully powered by PoE+. Installation is fuss-free and proposes significant savings in wiring cost. A single Cat 5/6 cable can be used for both data and power transmission. The WebENTRA C302ST comes complete with I/Os for 2 doors with a capacity for 30,000 cardholders and 75,000 events. Each WebENTRA C302ST controller connects up to 15 units of the WebENTRA C312ST reader modules via CAN bus, and supports up to a total of 32 doors (or 64 readers).

KeyENTRA OSDP Reader with Keypad

KEY FEATURES

  • Effortless Setup: InstaStart makes the setup process simple, reducing time and effort to configure any access control system.
  • Flexible Interface Selection: Built-in with multiple reader interface options—ADNET, OSDP, CLEX, and Wiegand, offering a range of connectivity choices for seamless integration.
  • Extensive Capacity: Manage access efficiently with 30,000 card IDs, transactions buffer of 75,000 events, 1,024 User Access Groups, 120 Holidays and 128 Weekly Schedules.
  • Versatile Power Options: Supports PoE/PoE+ up to 2A or direct 12-15V DC supply. Built-in battery charger with AC Fail switchover ensures uninterrupted operations.
  • Enhanced Security: A 64-bit card ID can accommodate a large population of credentials and eliminates the risk of ID collisions. Together with TLS 1.3 encryption, data transmission is secure with robust data integrity.



  • Direct to Cloud: Easy to navigate through an internet router and connect to a server in the cloud.
  • High-Speed Expansion Capability: Connects up to 15 door/reader modules via CAN bus, at 100kbps over 200m for efficient and scalable control of up to 32 doors.
  • Web-Ready Management: Built-in web server for Edge, Chrome, Safari and others makes it convenient to do database management, event reporting, and display device status.
  • Seamless Integration with IBSSweb: Integrate and manage with the IBSSweb Enterprise Security Management Software to streamline control and monitoring.
  • Durable and User-friendly: Non-corrosive metal housing for long-lasting performance. Silkscreen labels on front facing panels aid installation and termination.
Specifications*
C302ST
C312ST
C302STP
Ethernet Host Link
100BaseT
–
100BaseT
CAN Bus
Yes (IP Controller)
Yes (Door Module), Maximum 15 to a IP Controller
No
InstaStart Wizard
Yes
–
Yes
Power-Over-Ethernet
IEEE802.3af (PoE) or IEEE802.3at (PoE+)
–
No
Alternate DC Power Input
 12-15VDC
Battery Charger
 Yes with minimum 14V DC input
RS485 (Device Port)
 Up to 4x Readers
Wiegand Interface
 2
Alarm Input / Relay Output
 8 / 2
Cardholders
30,000
–
30,000
Event Buffers
75,000
–
75,000
User Access Groups
1,024
–
1,024
Holidays
120
–
120
Weekly Schedules
128
–
128
Current Consumption
(excluding Lock)
200mA at 12VDC
150mA at 12VDC
200mA at 12VDC
Dimensions
158 x 145 x 40 mm
158 x 145 x 40 mm
130 x 145 x 20 mm
Weight
450g
400g
350g

*Specifications are subject to change without prior notice

Datasheet
Model No.
Description
C302ST
 WebENTRA Compact 2-Door IP Controller
C312ST
 WebENTRA Compact 2 Door Reader Module
C302STP
 WebENTRA Compact ECO 2-Door IP Controller
C302STG1 WebENTRA Compact C302ST Package G1, Includes C302ST, RS3515, ABT7AH, AET200C
C312STG1 WebENTRA Compact C312ST Package G1, Includes C312ST, RS3515, ABT7AH, AET200C
C302STG2 WebENTRA Compact C302ST Package G2, Includes C302ST, RS3515, AET200C
C312STG2 WebENTRA Compact C312ST Package G2, Includes C312ST, RS3515, AET200C
C302STK1 WebENTRA Compact C302ST Package K1, Includes C302ST, RS10015, ABT7AH, AET300C
C312STK1 WebENTRA Compact C312ST Package K1, Includes C312ST, RS10015, ABT7AH, AET300C
C302STK2 WebENTRA Compact C302ST Package K2, Includes C302ST, RS10015, AET300C
C312STK2 WebENTRA Compact C312ST Package K2, Includes C312ST, RS10015, AET300C
C302STPG1 WebENTRA Compact ECO C302STP Package G1, Includes C302STP, RS3515, ABT7AH, AET200C
C302STPG2 WebENTRA Compact ECO C302STP Package G2, Includes C302STP, RS3515, AET200C
Accessories
RS3515 Power Supply 15VDC 2.4A Output (100 to 250VAC input)
RS10015 Power Supply 15VDC 7A Output (100 to 250VAC input)
ABT7AH 7AH 12VDC Lead Acid Battery
ABT12AH 12AH 12VDC Lead Acid Battery
AET200C AET200C Wall Mount Metal Enclosure (300x280x70mm)
AET300C AET300C Wall Mount Metal Enclosure (350x400x120mm)
