WebENTRA R300 Secure Encryption (SE) Readers

A family of secure encryption NFC readers capable of handling demanding contactless smartcard applications.

Clear
WebENTRA R300 Secure Encryption (SE) Readers
WebENTRA R300 Secure Encryption (SE) Readers
R385SE / R385SE-SAM
WebENTRA R300 Secure Encryption (SE) Readers
WebENTRA R300 Secure Encryption (SE) Readers
WebENTRA R300 Secure Encryption (SE) Readers

The WebENTRA R300 series is a secure encryption NFC reader capable of handling demanding contactless smartcard reader applications. With a 32bit ARM Cortex-M CPU and built-in hardware Cryptographic Acceleration Unit it can support AES128 and 3DES encryption algorithms. Secret keys for encryption can be stored in either Secure Access Modules (SAM) or internal reader memory.

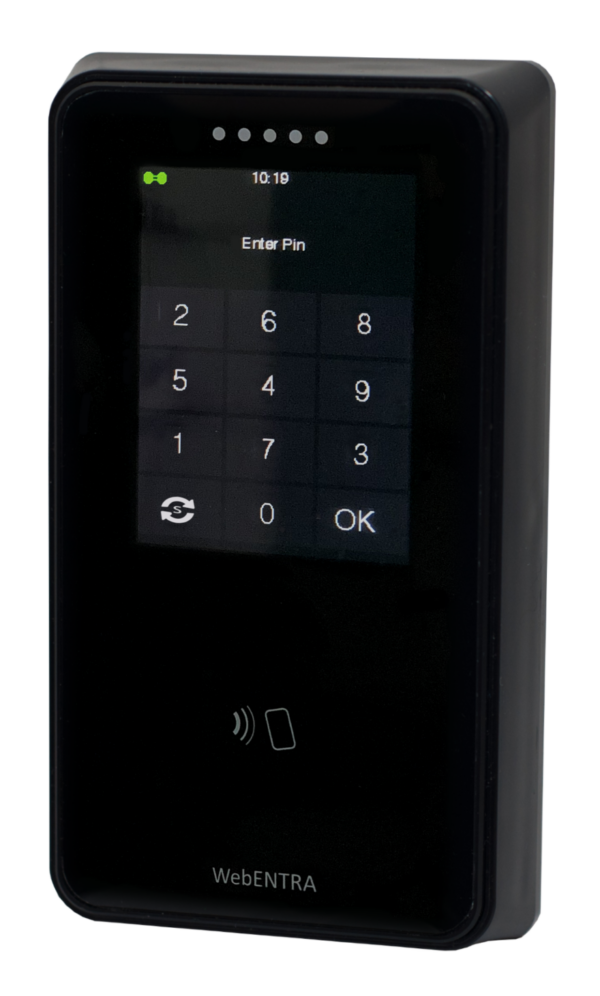

The R385 has a color TFT LCD with touch screen supporting scrambled PIN entry that greatly enhanced security. Options are available for touch capacitive PIN entry or reader only configuration.

The R300 series offers many connectivity options. The built-in RS485 interface support both the ADNET and the OSDP protocols. For connection to traditional controllers, Wiegand interface is also available.

Key Features

  • Touchscreen colour LCD with scrambled PIN entry*
  • Touch capacitive keypad (R303SE only)
  • Function key to control any electrical appliance or internal event action*
  • Support secure encryption with AES128, 3DES and CMAC cryptography
  • Option for secure encryption key in SAM or reader’s secured on-chip memory
  • Support up to 2x SAM**
  • OSDP v2 for more secure transmission
  • Compatible with 3rd party controller via OSDP or Wiegand interface
  • Configurable scrolling message from IBSS.web*
  • Time clock mode for integration with 3rd party attendance system*
  • Configurable time-based greeting upon presenting access card*
  • Display card holder name upon presenting access card*
  • Built-in tamper alarm, if the device sense someone tampering with the device an alarm will go off to alert surrounding**
  • PIN change capability directly from the reader’s LCD touchscreen*
*Only available on R385SE-SAM & R385SE models.
** Only available on R385SE-SAM, R385SE & R381SE-SAM.
Specifications R385SE-SAM / R385SE-SID R381SE-SAM / R381SE-SID R385SE R303SE R301SE
Description SE Reader with Touch Screen Color LCD and SAM SE Reader Only with SAM SE Reader with Touch Screen Color LCD SE Reader with Touch Sensing Keypad SE Reader Only
Contactless Technology NFC, ISO14443A/B and FeliCa
LCD TFT Color LCD, 240×320 with Touch Capacitive TFT Color LCD, 240×320 with Touch Capacitive
Keypad Capacitive Touchscreen Capacitive Touchscreen Touch Capacitive Keypad
Scrambled PIN Yes Yes
Encryption SAM Support Up to 2 x SAM in 2FF/Mini SIM Up to 2 x SAM in 2FF/Mini SIM No No No
RS485 Yes, Support ADNET & OSDP (192000bps)
Encryption Key in Reader Yes Yes Yes Yes Yes
Wiegand Yes Yes Yes Yes Yes
Tamper Switch Yes Yes Yes No No
Audio Feedback Buzzer
Visual Indicator 3 Color LED
Protection IP55
DC Power Supply 12VDC, 0.3A 12VDC, 0.25A 12VDC, 0.3A 12VDC, 0.2A 12VDC, 0.2A
Operating Temperature 0 – 50  °C
Humidity 90%
Dimensions  135 x 76 x 22 mm
Weight 0.5kg   0.3kg
Certifications CE & FCC
Model No. Description
R385SE-SAM WebENTRA SE Reader with Touch Screen Color LCD and SAM for SkeyMa
R385SE-SID WebENTRA SE Reader with Touch Screen Color LCD and SAM for SSID/PS21
R381SE-SAM WebENTRA SE Reader Only with SAM for SkeyMa
R381SE-SID WebENTRA SE Reader Only with SAM for SSID/PS21
R385SE WebENTRA SE Reader with Touch Screen Color LCD
R303SE WebENTRA SE Reader with Touch Sensing Keypad
R301SE WebENTRA SE Reader Only
