Video Intercom On-site Master Station

The AFR9200 Video Intercom Master Station has a built-in 7-inch IPS touchscreen.

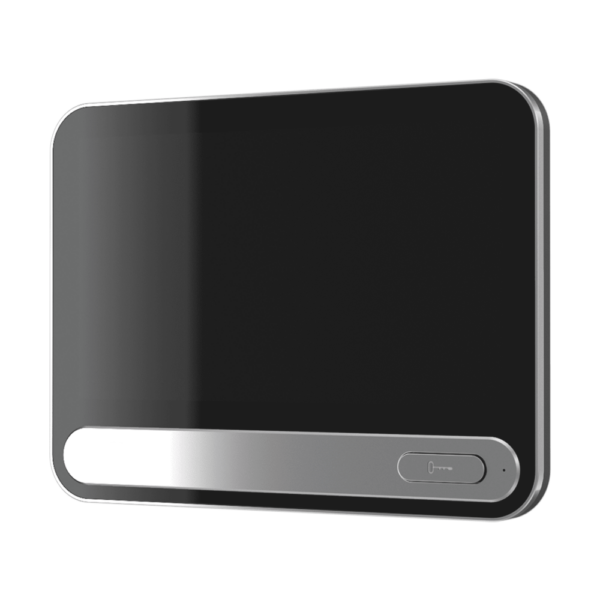

AFR9200

The AFR9200 Video Intercom Master Station has a built-in 7-inch IPS touchscreen. This master station supports up to 16 intercom door stations and offers live preview with advanced noise suppression. It also support up to 8-zone alarm access function.

Key Features

  • 7” IPS touchscreen
  • Support maximum of 6 intercom master stations in same network
  • Supports live viewing of up to 16 channels from video intercom door station, video doorbell or IP cameras
  • 8ch zone alarm access function
  • Advance noise suppression and echo cancellation

System Design



Specifications AFR9200
Description Video Intercom On-site Master Station
LCD Display 7” IPS Touchscreen (Capacitive)
Video Input (Live View) 16-ch (Video Intercom Door Station / Video Doorbell / IP cameras)
Video Input Resolution 6MP / 5MP / 4MP / 3MP / 1080P / 1280×1024 / 960P / 720P / 960H / D1 / CIF
Compression H.265+ / H.265 / H.264
Audio Input / Output Built-in Microphone / Built-in Speaker
Video Recording Up to 8MP
Storage Built-in micro SD card slot, up to 256GB
Communication Interface Ethernet, 2.4Ghz Wi-Fi
Power Supply 12VDC, 0.5A / PoE
Power Consumption <6W
Operating Temperature -20 ͦC – 50 ͦC
Humidity <95%
Dimension (H x W x D) 135.6 x 180.6 x 26.8 mm
Weight 360g

*Specifications are subject to change without prior notice

Datasheet: https://www.asis-technologies.com/datasheets/readers-datasheets/

Model No. Description
AFR9200 Video Intercom On-site Master Station
