KeyENTRA Wiegand Readers

The KeyENTRA Wiegand Readers are compact and robust for easy, fuss-free use.

Clear
Enquiry
KeyENTRA Wiegand Reader
KeyENTRA Wiegand Reader

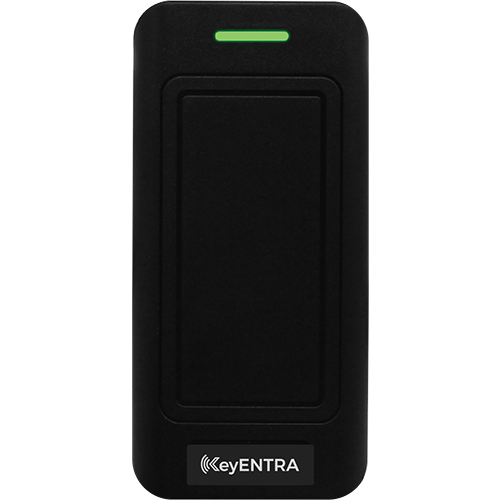

K201 KeyENTRA Wiegand Reader

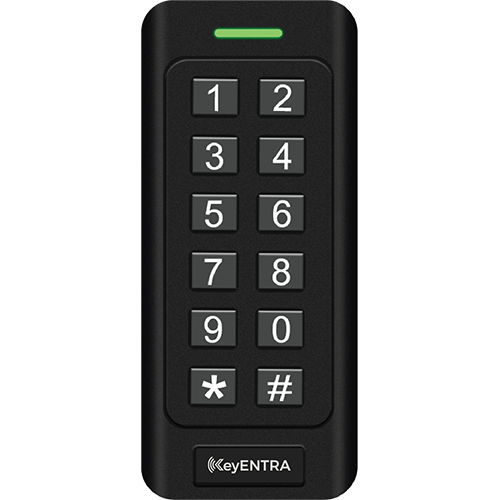

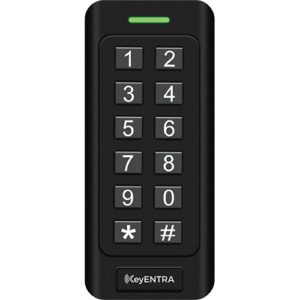

K203 KeyENTRA Wiegand Reader

The KeyENTRA Wiegand Readers are compact and robust for easy, fuss-free use.

These readers are used with Mifare cards to read up to 7-byte UID with an industry standard Wiegand interface that supports up to 58 bits. The readers are flexible and compatible with any access control system.

Suitable for use both indoors and outdoors, this reader offers IP66 ingress protection. Available in reader only and reader with keypad options, catering to user requirements.

Key Features

  • Sleek & elegant design
  • Wiegand (up to 58 bits)
  • Supports MIFARE (UID7)
  • IP66, -40°C~60°C
  • With LED and buzzer
Specifications* K203 K201
Description KeyENTRA Wiegand Reader with Keypad KeyENTRA Wiegand Reader
Contactless Technology ISO 14443 Type A/B
Keypad Silicone Rubber Keypad
RS485 No
Wiegand Yes (up to 58 bits)
Protection IP66
DC Power Supply 9-18VDC, ≤35mA 9-24VDC, ≤25mA
Operating Temperature -40 ͦC ~ 60 ͦC
Humidity 95% 98%
Dimensions (H x W x D) 122 x 50 x 21 mm 103 x 48 x 20 mm
Weight 155g 100g

*Specifications are subject to change without prior notice

Datasheet: https://www.asis-technologies.com/datasheets/readers-datasheets/

Model No. Description
K203 KeyENTRA Wiegand Reader with Keypad
K201 KeyENTRA Wiegand Reader
