Is ASIS Technologies access control hardware compatible with the OSDP standard?

Yes. WebENTRA controllers and KeyENTRA readers support OSDP, the SIA-developed standard published as IEC 60839-11-5, alongside Wiegand and RS485 (ADNET, CLEX) interfaces.

What encryption does SKeyMa use to protect credential data?

WebENTRA R100 Series readers combine the SKeyMa key-management framework with AES-128 and 3DES algorithms, storing secret keys in a Secure Access Module (SAM). SKeyMa is also offered as a tiered service â€” Prime, Corporate, and Private â€” using AES-256.

Why do GoENTRA and WebENTRA list different encryption strengths (AES-256 vs AES-128)?

They protect different layers. WebENTRA R100 Series reader-to-SAM communication uses AES-128 with 3DES. GoENTRA mobile credentials and the higher SKeyMa service tiers use AES-256. Both are current, supported configurations; the appropriate tier depends on deployment risk profile.

Can IBSSweb scale from a single-door installation to a multi-site enterprise deployment?

Yes. IBSSweb scales from a simple access-control-only configuration up to a global, multi-site deployment supporting up to 100,000 users, with automatic server failover for continuous availability.

Does IBSSweb have any known database limitations?

When deployed on SQL Server Express, IBSSweb is subject to that edition's database size ceiling. Administrators must perform periodic data trimming to maintain uninterrupted operation.

What are the four AI pillars inside IBSSweb v5 AI?

PULSE (Predictive System Health), RISK (Credential Intelligence), AOS (Automated Operations), and COG (Cognitive Support).

What certifications does ASIS Technologies hold?

ISO 9001:2015 quality management certification, bizSAFE Level 3, the Progressive Wage Mark, and CE and FCC certification on edge hardware.

Should an enterprise security management system be hosted on-site or in the cloud?

Either can work. On-site hosting, on a physical server or a virtual machine, gives your own IT team full control and suits organizations with highly sensitive data. Cloud hosting shifts server maintenance to a data center and suits organizations that would rather not manage that hardware themselves.

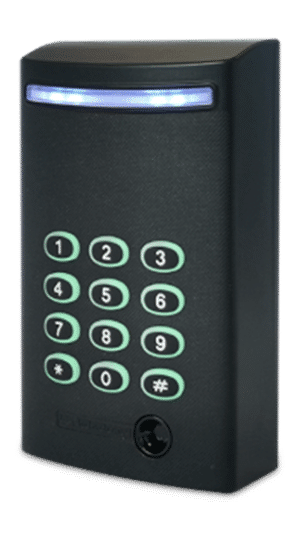

WebENTRA R500 SE BLE Mobile Readers

The WebENTRA R500 series are secure NFC mobile access readers with built-in BLE (Bluetooth Low Energy) for fast and secure authentication. These readers support mobile device access, eliminating the need for physical cards, with full control via the IBSSgo cloud management system. Compatible with ADNET, OSDP, and Wiegand, the R500 integrates seamlessly with traditional access control systems or can be paired with a cloud interface unit (CIU) for a cost-effective, controller-free setup. Ideal for corporate offices, residential developments, turnstiles, car parks, public infrastructures, and remote facilities, the R500 offers versatile and modern access control solutions.

Key Features

NFC and Bluetooth (BLE) for fast and secure operation with mobile access
Option Ethernet for built-in PoE (Power over Ethernet) support
Mullion, wall switch and keypad options available
Individually addressable RGB LEDs to customize animated patterns for easy recognition

Supports 4 modes of operation— NFC, Remote, Vicinity & Wave
Enhanced security design using crypto CPU with anti-tamper features
Polyphonic sounder to customize tones and loudness
RS485 interface that supports ADNET and **OSDP

Specifications*	R502STSE	R512STSE	R513STSE	R512STSEK	R513STSEK	R514STSEK
Description	R502ST WebENTRA SE Bluetooth Mobile Reader	R512ST WebENTRA SE Bluetooth Mobile Reader	R513ST WebENTRA SE Bluetooth Mobile Reader with SAM	R512ST WebENTRA SE Bluetooth Mobile Reader with Keypad	R513ST WebENTRA SE Bluetooth Mobile Reader with Keypad & SAM	R514ST WebENTRA SE Bluetooth Mobile Reader with Keypad, SAM & PoE
Form Factor	Mullion	Wall switch	Wall switch	Wall switch with keypad	Wall switch with keypad	Wall switch with keypad
NFC Frequency/ISO	13.56MHz / ISO14443 Type A, B	13.56MHz / ISO14443 Type A, B	13.56MHz / ISO14443 Type A, B	13.56MHz / ISO14443 Type A, B	13.56MHz / ISO14443 Type A, B	13.56MHz / ISO14443 Type A, B
NFC Operating Range	20 to 40 mm	20 to 80 mm	20 to 80 mm	20 to 80 mm	20 to 80 mm	20 to 80 mm
BLE Version/Freq	5.0 BLE / 2.4GHz	5.0 BLE / 2.4GHz	5.0 BLE / 2.4GHz	5.0 BLE / 2.4GHz	5.0 BLE / 2.4GHz	5.0 BLE / 2.4GHz
BLE Operating Range	0.1 to 10m	0.1 to 10m	0.1 to 10m	0.1 to 10m	0.1 to 10m	0.1 to 10m
Wave Sensor	Yes	Yes	Yes	Yes	Yes	Yes
Interface Ports	Wiegand In, Wiegand Out, RS485	Wiegand In, Wiegand Out, RS485	Wiegand In, Wiegand Out, RS485	Wiegand In, Wiegand Out, RS485	Wiegand In, Wiegand Out, RS485	Wiegand In, Wiegand Out, RS485
Wiegand Formats	26, 32, 37, 40, 56, 80, 168 (ASIS) bits format and 8-digit 32, 37, 40	26, 32, 37, 40, 56, 80, 168 (ASIS) bits format and 8-digit 32, 37, 40	26, 32, 37, 40, 56, 80, 168 (ASIS) bits format and 8-digit 32, 37, 40	26, 32, 37, 40, 56, 80, 168 (ASIS) bits format and 8-digit 32, 37, 40	26, 32, 37, 40, 56, 80, 168 (ASIS) bits format and 8-digit 32, 37, 40	26, 32, 37, 40, 56, 80, 168 (ASIS) bits format and 8-digit 32, 37, 40
RS485	ADNET & **OSDP	ADNET & **OSDP	ADNET & **OSDP	ADNET & **OSDP	ADNET & **OSDP	ADNET & **OSDP
Ethernet with POE	No	No	No	No	No	Yes
LED Display/Sounder	9 x RGB individually addressable / Polyphonic sounder	9 x RGB individually addressable / Polyphonic sounder	9 x RGB individually addressable / Polyphonic sounder	9 x RGB individually addressable / Polyphonic sounder	9 x RGB individually addressable / Polyphonic sounder	9 x RGB individually addressable / Polyphonic sounder
Crypto CPU	Yes	Yes	Yes	Yes	Yes	Yes
SAM Support	No	No	Yes	No	Yes	Yes
Dimension (HxWxD)	115x50x25 mm	115x65x25 mm	115x65x25 mm	115x65x25 mm	115x65x25 mm	115x65x25 mm
Power Input	12 – 15 VDC, 0.2A	12 – 15 VDC, 0.2A	12 – 15 VDC, 0.2A	12 – 15 VDC, 0.2A	12 – 15 VDC, 0.2A	12 – 15 VDC, 0.2A
Environment	Weatherproof	Weatherproof	Weatherproof	Weatherproof	Weatherproof	Weatherproof

*Specifications are subject to change without prior notice

Datasheet

Model No.	Description
R502STSE	R502ST WebENTRA SE Bluetooth Mobile Reader
R512STSE	R512ST WebENTRA SE Bluetooth Mobile Reader
R513STSE	R513ST WebENTRA SE Bluetooth Mobile Reader with SAM
R512STSEK	R512ST WebENTRA SE Bluetooth Mobile Reader with Keypad
R513STSEK	R513ST WebENTRA SE Bluetooth Mobile Reader with Keypad & SAM
R514STSEK	R514ST WebENTRA SE Bluetooth Mobile Reader with Keypad, SAM & PoE
