AFR9000 7” Face Recognition Terminal

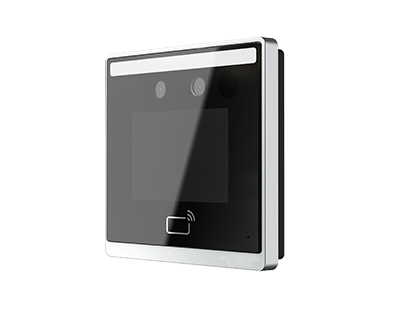

The AFR9700 Face Recognition Terminal features a 7-inch color touchscreen LCD, dual cameras for 3D live face detection, and supports up to 10,000 users.

AFR9700_3

The AFR9700 Face Recognition Terminal features a 7-inch color touchscreen LCD, dual cameras for 3D live face detection, and supports up to 10,000 users.

Built-in with a deep learning algorithm, this terminal is highly accurate in recognition and in distinguishing real faces from spoofing. Additionally, this terminal supports multiple authentication modes including card only, card & PIN, card & face, etc.

Key Features

  • 7” HD color touchscreen LCD
  • Dual camera for 3D live face detection
  • Support 10,000 users
  • Equipped with both IR LED and white LED soft light to ensure optimal visibility in any lighting condition

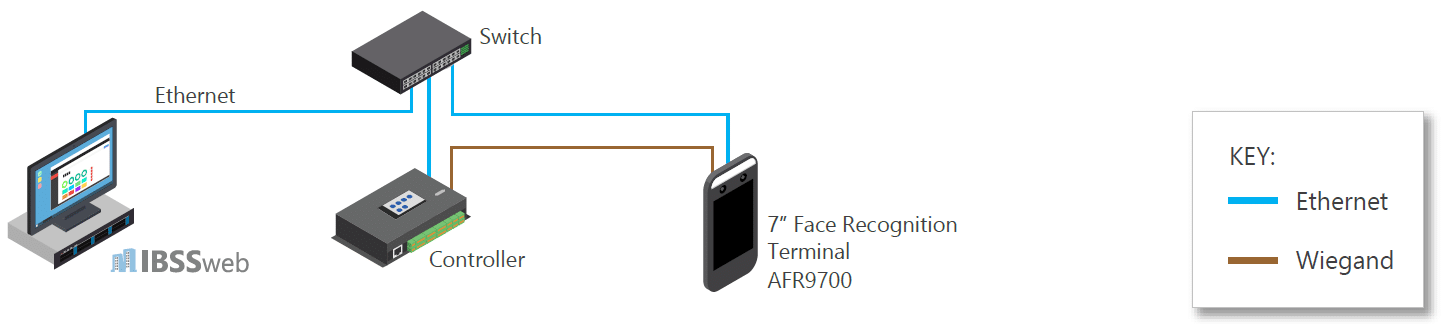

System Design



Specifications AFR9700
Description AFR9000 7” Face Recognition Terminal
Authentication Method Face / Face & Card
Reader Technology MIFARE (ISO14443 Type A/B)
Camera Dual 2MP Lens
Face Recognition Distance 0.3 – 1.5m
White Light Distance
0.3 – 1m
IR Distance 0.3 – 2m
Face Database 10,000
Communication Interface Wiegand (Input/Output), Ethernet for biometric template download
Power Supply 12VDC, 1A
Power Consumption <12W
Operating Temperature -20 ͦC – 50 ͦC
Humidity <95%
Dimension (H x W x D) 244.6 x 120.4 x 30.0 mm
Weight 520g

*Specifications are subject to change without prior notice

Datasheet: https://www.asis-technologies.com/datasheets/readers-datasheets/

Model No. Description
AFR9700 AFR9000 7” Face Recognition Terminal
