Elevate security indoors and outdoors with KeyENTRA OSDP Readers – compact, robust, and sleek.

Clear
Enquiry

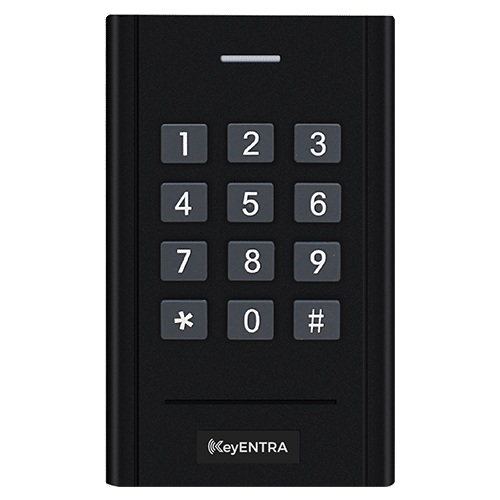

KeyENTRA OSDP Reader with Keypad
KeyENTRA OSDP Reader with Keypad
KeyENTRA OSDP Reader with Keypad

The KeyENTRA OSDP Readers are compact and robust, a sleek and elegant solution for any premises. These versatile readers support dual frequencies of 13.56MHz and 125kHz, allowing them to read a wide range of card types. In addition to MIFARE cards (reading up to 7-byte UID for higher security), they also support HID Prox and EM cards. This reader family boasts compatibility with industry-standard interfaces, including both OSDP and Wiegand, with support for up to 58 bits. With an IP66 rating, the readers are suitable for use both indoors and outdoors. The keypad model offers an excellent option for elevated security in access control operations.

IBSSweb Web-Based Enterprise Security Management Software
KeyENTRA OSDP Reader with Keypad

Key Features

  • Dual-Frequency Support (13.56MHz and 125kHz) – Reads MIFARE (up to 7-byte UID), HID Prox, and EM cards.
  • Sleek & Elegant Design
  • OSDP & Wiegand (up to 58 bits)
  • IP66 Rated for Indoor and Outdoor Use (-40°C to 60°C)
  • Built-in LED and Buzzer
Specifications* K603 K601
Description KeyENTRA OSDP Reader with Keypad KeyENTRA OSDP Reader only
Technology Type Contactless RFID
Supported Card Standards ISO14443A, NFC, MIFARE Classic, MIFARE DESFire, HID Prox, EM4100
Operating Frequency 13.56 MHz (ISO14443, MIFARE, NFC), 125 kHz (HID Prox, EM)
Keypad Silicone Rubber Keypad
RS485 OSDP
Wiegand Yes (up to 58 bits)
Protection IP66
DC Power Supply 9-18VDC, ≤50mA
Operating Temperature -40 ͦC ~ 60 ͦC
Humidity 98%
Dimensions (H x W x D) 120 x 75 x 20 mm
Weight 200g

*Specifications are subject to change without prior notice

Datasheet
Model No. Description
K603 KeyENTRA OSDP Reader with Keypad
K601 KeyENTRA OSDP Reader only
