VEGA L-Series Intelligent Locker Cabinet

Instantaneous, trackable storage.

The VEGA Intelligent Locker Cabinet brings the same strict, reliable tracking used for keys to your physical items — personal belongings, company equipment, shared devices, evidence, or packages. Busy locations get strong, easily trackable storage without the need for paper logs or the problems that come with shared lockers.

Benefit 01

Automated Management

Locker compartments are assigned, opened, and reassigned automatically. There is no need to wait in line at reception or to get a manager’s signature.

Benefit 02

Multi-Factor Authentication

A combination of facial recognition, Mifare smart cards (13.56 MHz RFID), and PIN codes can be used to set the security level to match the value and sensitivity of the stored items.

Benefit 03

Fast and Responsive Touchscreen

The system features a high-quality 10.1-inch Android touchscreen (800×1280 resolution). A sensor wakes the screen automatically when someone approaches within one metre, and it goes into a power-saving sleep mode when left alone.

Intelligent Locker Cabinet Range

Two form factors. Modular by design.

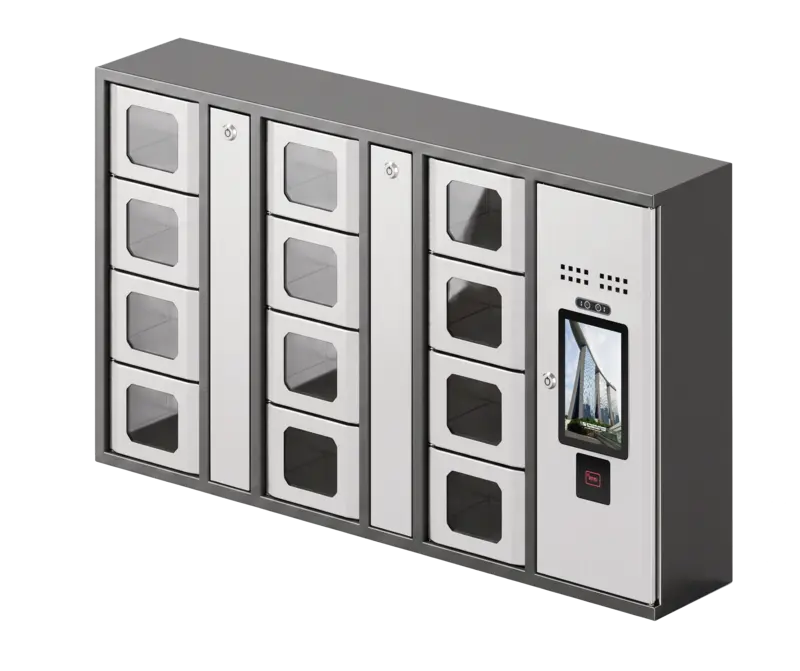

L1 Wall-Mounted Model: Perfect for areas with limited space.

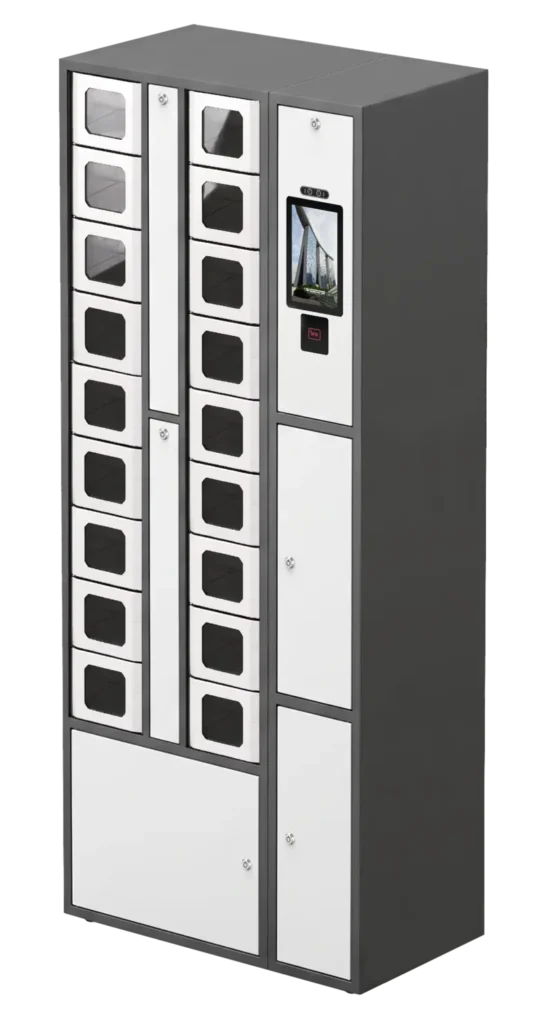

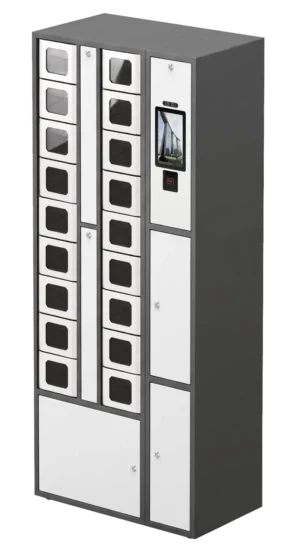

L3 Floor-Standing Model: Best for busy locations that need to store a large number of items.

Both models offer a main unit that includes the control screen, as well as “Cabinet Only” extensions — adding locker space without paying for extra screens or changing the workflow.

Wall-Mount

L1 · Compact

Up to 12 lockers · control terminal

Terminal 622×1100×220 mm · 40 kg

Extension 622×810×220 mm · 35 kg

Compartment 140×190 mm · layout 4×3, customisable

VG-L1-012T (with terminal) · VG-L1-012 (cabinet only)

Floor-Standing

L3 · Enterprise

Up to 20 lockers · control terminal

Terminal 1810×756×400 mm · 130 kg

Extension 1810×480×400 mm · 110 kg

Compartment 150×210 mm · layout 10×2, customisable

VG-L3-020T (with terminal) · VG-L3-020 (cabinet only)

Where L-Series Fits in the System

An edge device, not a standalone silo.

Connects To

The VEGA Management Hub, over TCP/IP or WiFi — every locker on site reports to one console.

Feeds Into

IBSSweb, via the Hub’s dedicated gateway — every assignment, retrieval and return becomes a unified audit record.

Scales With

The VG-KMSC console tier you choose — alongside K-Series cabinets on the same site. See the full architecture →

Intelligent Locker Cabinet Capabilities

Enterprise-grade at every compartment.

The VEGA L-Series is not just a standard locker with a new logo. Its control screen, sensors, and network technology are built to the same high professional standards as the VEGA K-Series.

Quick Retrieval

Assigned lockers are easily located and opened, minimising queue time in high-traffic environments.

Software Integration

Fully integrated with the IBSSweb Security Management Software for authentication, asset assignment and audit trails.

Management Hub Support

Compatible with the VEGA Management Console for booking, approval workflows and granular access control.

Secure Storage for Busy Areas

Built for the sites where a shared locker isn’t good enough.

Company devices, personal belongings, evidence and packages all share a common issue: a standard locker with a physical key cannot record who opened it, or when. The VEGA Intelligent Locker Cabinet automatically tracks every transaction, whether an item is stored, collected, or returned.

Staff & Shift Storage

Employees can safely store personal items and work tools. The lockers automatically reset for the next shift without the need for a manager’s approval.

Evidence & Secure Tracking

Controlled storage where every action is recorded with a time and date stamp and exported to IBSSweb.

Parcel & Item Drop-Off

Choose from different locker sizes and layouts (such as 4×3, 4×2, or 8×2) to match the types of items regularly handled at reception or delivery areas.

See how the L-Series applies across all 10 industries on the Industry Applications page →

Frequently Asked

L-Series questions, answered.

What's the difference between L1 and L3?

L1 is a wall-mounted locker for space-constrained sites, supporting up to 12 compartments per cabinet. L3 is a floor-standing locker for higher-throughput sites, supporting up to 20 compartments per cabinet.

What authentication methods does the L-Series support?

Face recognition, a 13.56 MHz Mifare card (ISO 14443-A), and PIN, entered on a 10.1-inch Android touch terminal.

Can locker capacity be expanded without adding another terminal?

Yes. Both L1 and L3 support a “Cabinet Only” extension unit that adds compartments to an existing terminal, rather than requiring a second complete unit.

Does the L-Series integrate with IBSSweb?

Yes. The L-Series is fully integrated with IBSSweb Security Management Software for authentication, asset assignment and audit trails, via the VEGA Management Hub.

The Rest of VEGA

Key custody is one part of the system.

Every K-Series cabinet reports into the same Management Hub and the same IBSSweb integration surface as the rest of the VEGA family.

VEGA K-Series

Size the L-Series to your locker demand.

An ASIS representative will do a walk through with you to identify the key inventory, locker needs and the users, and give you a proposal for the equipment and system setup.

Specifications	L1 · Compact	L3 · Enterprise
Cabinet / Locker
Locker Capacity	Up to 12 Lockers	Up to 20 Lockers
Standard Layout	4 x 3 layout (Customizable to 4×2, 3×3, etc.)	10 x 2 layout (Customizable to 9×2, 8×2, etc.)
Compartment Size	140(W) x 190(H) mm	150(W) x 210(H) mm
Material	Galvanized steel sheet (Door thickness: 2.0mm, Body: 1.5mm)
Operating Mode	Online / Offline
Form Factor	Wall-mounted	Floor-standing
Operating Conditions	Temp: -20°C to 70°C / Humidity: Up to 80% RH
Dimensions (Terminal Unit)	622 x 1100 x 220 mm (H x W x D)	1810 x 756 x 400 mm (H x W x D)
Dimensions (Extension Unit)	622 x 810 x 220 mm (H x W x D)	1810 x 480 x 400 mm (H x W x D)
Weight (Terminal Unit)	40 kg	130 kg
Weight (Extension Unit)	35 kg	110 kg
Control Terminal
Display	10.1-inch Capacitive Touch Screen (800 x 1280 resolution, 16:10)
Compute	RK3288 Quad-Core 1.8GHz · 2GB RAM · 8GB Storage · Android 7.1.2
Face Recognition	200W Pixel HDR Wide Dynamic Dual Camera, Infrared Night Vision (850nm), Liveness Detection
Verification Speed	< 1 second (1:N matching), >99% Accuracy
Card Reader	13.56MHz Mifare Card Reader (ISO14443-A)
Approach Sensing	Infrared human-approach module · 1 m effective distance · auto-sleep
Network	Standard TCP/IP or WiFi · real-time sync to the VEGA Management Hub
Power Supply	DC12V (Operating voltage of door lock: DC12V / 2A)
Terminal Operating Temp	-10°C to 60°C
Certification	CE Certified (VEGA product)

Note: Specifications are subject to change without prior notice.

Datasheet

Model No.	Product Description
L1 · Compact (Wall-Mount)
VG-L1-012T	VEGA L1 12-Locker Cabinet with Control Terminal
VG-L1-012	VEGA L1 12-Locker Cabinet only (Extension Cabinet)
L3 · Enterprise (Floor-Standing)
VG-L3-020T	VEGA L3 20-Locker Cabinet with Control Terminal
VG-L3-020	VEGA L3 20-Locker Cabinet only (Extension Cabinet)
