Is ASIS Technologies access control hardware compatible with the OSDP standard?

Yes. WebENTRA controllers and KeyENTRA readers support OSDP, the SIA-developed standard published as IEC 60839-11-5, alongside Wiegand and RS485 (ADNET, CLEX) interfaces.

What encryption does SKeyMa use to protect credential data?

WebENTRA R100 Series readers combine the SKeyMa key-management framework with AES-128 and 3DES algorithms, storing secret keys in a Secure Access Module (SAM). SKeyMa is also offered as a tiered service â€” Prime, Corporate, and Private â€” using AES-256.

Why do GoENTRA and WebENTRA list different encryption strengths (AES-256 vs AES-128)?

They protect different layers. WebENTRA R100 Series reader-to-SAM communication uses AES-128 with 3DES. GoENTRA mobile credentials and the higher SKeyMa service tiers use AES-256. Both are current, supported configurations; the appropriate tier depends on deployment risk profile.

Can IBSSweb scale from a single-door installation to a multi-site enterprise deployment?

Yes. IBSSweb scales from a simple access-control-only configuration up to a global, multi-site deployment supporting up to 100,000 users, with automatic server failover for continuous availability.

Does IBSSweb have any known database limitations?

When deployed on SQL Server Express, IBSSweb is subject to that edition's database size ceiling. Administrators must perform periodic data trimming to maintain uninterrupted operation.

What are the four AI pillars inside IBSSweb v5 AI?

PULSE (Predictive System Health), RISK (Credential Intelligence), AOS (Automated Operations), and COG (Cognitive Support).

What certifications does ASIS Technologies hold?

ISO 9001:2015 quality management certification, bizSAFE Level 3, the Progressive Wage Mark, and CE and FCC certification on edge hardware.

Should an enterprise security management system be hosted on-site or in the cloud?

Either can work. On-site hosting, on a physical server or a virtual machine, gives your own IT team full control and suits organizations with highly sensitive data. Cloud hosting shifts server maintenance to a data center and suits organizations that would rather not manage that hardware themselves.

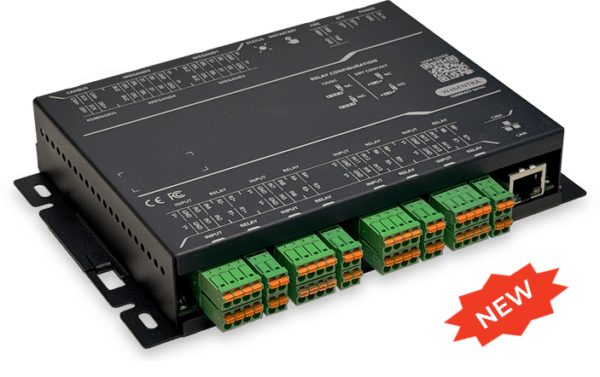

WebENTRA Flex Series IP Access Controller

The WebENTRA C400ST is the flagship controller of the new Flex Series. Engineered for the modern agile enterprise, it introduces a strategic Pay-As-You-Grow architecture enabled by the innovative Virtual Expansion Module (VEM).

The C400ST Flex is not just hardware; it is a scalable platform that optimizes Capital Expenditure (CapEx) by offering a robust mid-market entry point that can instantly scale to enterprise capacity via the C400ST-VEM software license – eliminating the need for disruptive hardware “rip-and-replace” upgrades.

Strategic Business Value

ROI & Business Continuity

Strategic capital allocation via VEM aligns infrastructure spend directly with business growth stages. Business continuity is intact even during catastrophic network outages, mitigating operational risk.

Zero-Trust & Convergence

Data protection with TLS 1.3 encryption and Secure Access Module (SAM) with Crypto Chip provides a hardened cyber posture that complies with stringent corporate IT security policies. Future-proof Hybrid-Cloud Architecture supports both On-Premise LAN and Direct-to-Cloud connectivity natively.

Profitability & Efficiency

Project margin protection with the InstaStart Wizard reduces commissioning times by up to 40%. Simplified inventory management with the VEM licensing model on a single hardware that covers the spectrum from mid-market to large corporate sites.

Core Technical Features

High-Density I/O Matrix

12 Supervised Inputs and 6 Relays onboard eliminate auxiliary I/O boards in standard 4-door deployments, saving cost and enclosure space.

Hybrid Expansion Bus

Supports mixed topology of 7 x C414ST Reader Modules and 2 x I/O Modules simultaneously on a single CAN bus.

Dual-Protocol Interface

Simultaneous 1 x RS485 (OSDP & ADNET) and 4 x Wiegand ports ensure compatibility for legacy retrofits and secure installations.

Virtual Expansion Engine

Hardware scales from 50k to 100k Users via C400ST-VEM license, fitting diverse specs with a single SKU.

Native Line Supervision

12 inputs support 4-state supervision (Open/Close/ Short/Cut), meeting high-security standards without external resistors.

Intelligent Event Logic

Programmable Event Actions cross-trigger outputs (Lift, Fire, Siren) based on logic, eliminating external PLCs.

Cyber-Secure Link

Native TLS 1.3 host communication removes the need for external VPN hardware in cloud-hosted designs.

Elevator Control Ready

Native Low-Level Interface (LLI) logic manages complex multi-lift groups without specialized firmware.

Specifications*	C404ST (Base Controller)	With Virtual Expansion (VEM)	C414ST (Reader Module)
Capacity & Logic
Max Doors	4 Doors (Expandable to 32)	–	4 Doors
Cardholders	50,000 IDs	100,000 IDs	N/A
Event Buffer	100,000	500,000	N/A
User Access Groups	1,024	–	N/A
Weekly Schedules	128	–	N/A
Holidays	120	–	N/A
Multi-Lift Groups	255	–	N/A
Expansion Capabilities**
Reader Modules	Max 7 × C414ST FLEX		N/A
I/O Modules	Max 2 × (P920ST or P930ST)		N/A
Input / Output Configuration
General Purpose Inputs	12 × Inputs (Supervised LSS)
Relay Outputs	6 × Relays (12V 2A Max.)
Relay Usage	4 for Doors & 2 for Event Actions
Dedicated Inputs	1 × Tamper, 1 × Fire Alarm
Communication & Interfaces
Host Link	1 × Ethernet (100Base-T)	–	N/A
Module Expansion	1 × CAN Bus		N/A
Web Connections	5 Concurrent Sessions (Max.)	–	N/A
Reader Port (RS485)	1 × RS485 (OSDP & ADNET)
Reader Port (Wiegand)	4 × Wiegand
Electrical & Physical
Power Input	12 – 15V DC
Battery Charger	Yes (Built-in, min 15V input)
Dimensions	158 × 145 × 40 mm
Operating Temp.	0 – 50°C
Operating Humidity	90%
Certifications	CE & FCC

* Specifications are subject to change without prior notice.
** Combination of Reader & I/O modules is supported simultaneously.

Datasheet

Model No.	Product Description
Controller Packages
C404ST	WebENTRA Flex C400ST 4-Door IP Controller
C404STK1	WebENTRA Flex C404ST Package K1, includes C404ST, RS10015, ABT7AH, AET300C
C404STK2	WebENTRA Flex C404ST Package K2, includes C404ST, RS10015, AET300C
Virtual Expansion Module (VEM)
C400ST-VEM	Virtual Expansion Module (upgrade to 100,000 IDs and 500,000 Events)
Expansion Module Packages
C414ST	WebENTRA Flex C414ST 4-Door Reader Module
C414STK1	WebENTRA Flex C414ST Package K1, includes C414ST, RS10015, ABT7AH, AET300C
C414STK2	WebENTRA Flex C414ST Package K2, includes C414ST, RS10015, AET300C
P920ST	WebENTRA PRO Input Module – supports 32 Inputs and 8 Relay Outputs
P930ST	WebENTRA PRO Output Module – supports 32 Relay Outputs and 8 Inputs
Accessories
RS10015	Power Supply Unit 15VDC 7A Output
ABT7AH	12VDC 7AH Lead Acid Battery
AET300C	Wall Mount Metal Enclosure (350 × 400 × 120mm)
