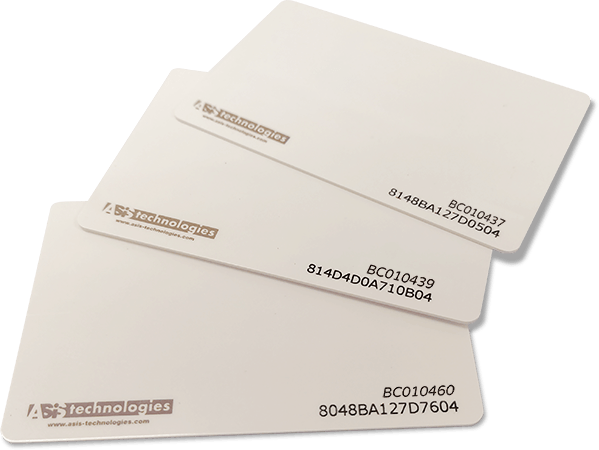

UHF Cards

A new family of Higgs-3 powered UHF RFID. Its Higgs-3 core provides 512-bits of user memory for applications requiring local data storage, and an extensible EPC number for alternative industry standard and legacy part numbering schemas.

Clear
UHF Cards

A new family of Higgs-3 powered UHF RFID. Its Higgs-3 core provides 512-bits of user memory for applications requiring local data storage, and an extensible EPC number for alternative industry standard and legacy part numbering schemas.

It also features a unique 64-bit TID for use in product authentication and serialization applications and read/write password support to prevent unauthorized viewing/modification of the tag’s data.

shutterstock_1525081304@2x

Key Features

  • Worldwide operation in the RFID UHF bands (860-960MHz)
  • Higgs™-3 IC with 800-bits of Non-Volatile Memory
    • 96 EPC bits, extensible to 480-bits
    • 512 User bits
    • 64-bit Unique TID
    • 32-bit Access and 32-bit Kill passwords
  • Pre-programmed with a unique, unalterable 64-bit serial number
  • User Memory can be Block Perma-Locked as well as read password protected in 64-bit blocks
  • Exceptional Operating Range
  • Available in High-yield, high-capacity dry/wet inlay rolls for high volume converting processes
Specifications* UHF Cards
Smart Chip Alien Higgs-3
Operating Frequency 840 – 960 MHz
Read Range ≥ 8 m
User Memory 512-bit
Material PVC
Color White/ Glossy
Dimensions (H x W x D) 54 x 85.7 x 0.76 mm (Standard Credit Card Size)
Weight 5.8g
Operating Temperature -25°C to 50°C
Model No.
Description
UF1
UHF Passive Card (ISO) – Single Band
UF2A
UHF/MIFARE Passive Card (ISO) – Dual Band
UFD24K UHF/MIFARE DESFire EV2 4K Card (ISO)
