AMR600 QR Readers

A high performance QR readers providing high speed and accurate recognition capability with both desktop and well as flush mount options.

Clear
Enquiry
AMR600 QR Readers
AMR600 QR Readers
AMR612C
AMR620C
AMR622M

The AMR600 series readers are QR code as well as RFID card readers in a single package with various mounting options.

The AMR620 are high performance readers providing high speed and accurate recognition capability with both desktop and well as flush mount options. It can recognize QR/1D/2D barcodes and read up to 64 bit ISO14443A/B with output to Wiegand port.

The AMR612C is a low cost recessed mount QR/1D/2D and MIFARE reader with Wiegand output up to 34 bits .

Ideal for many applications including Visitor Management, Facilities Booking, Staff Access etc.

Key Features

  • High scanning speed and recognition rate
  • Supports multiple sizes of QR, 1D and 2D codes
  • Wiegand/RS232/RS485/USB interface
  • Built-in with RFID contactless card reader ISO14443A/B & QR code
Specifications
AMR612C
AMR620C
AMR622M
Description
AMR600 Recess Mount Mifare & QR Reader
AMR600 Recess Mount QR Reader

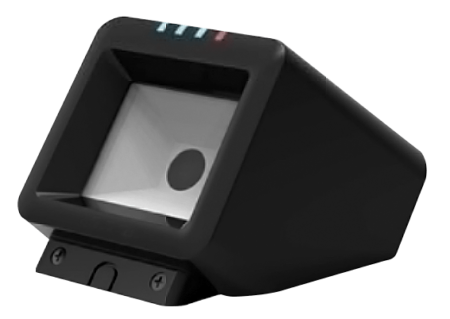

AMR600 Surface Mount RFID & QR Reader
Decoding Support
QR, 1D, 2D
Communication
Wiegand 34 bits
Wiegand 34, 64, 66 bits
LED Indicator
Green, Red
Blue, Red
Buzzer
Yes
Contactless
Mifare 32 bits
ISO14443 A/B, FeliCa
Input Voltage
8 ~ 12VDC
9 ~ 24VDC
Dimension (HxWxD)
86mm x 86mm x 42mm
70mm x 98mm x 49mm
95mm x 91mm x 90mm
Weight
150g
170g
Operating Conditions
-20°C~70°C, Humidity 10%~90%
0°C~50°C, Humidity 30%~90%

*Specifications are subject to change without prior notice

Datasheet: https://www.asis-technologies.com/datasheets/readers-datasheets/

Model No. Description
AMR612C AMR600 Recess Mount Mifare & QR Reader
AMR620C AMR600 Recess Mount QR Reader
AMR622M AMR600 Surface Mount RFID & QR Reader

Additional information

Weight N/A
Dimensions N/A
MODEL NO

AMR612C, AMR620C, AMR622M
