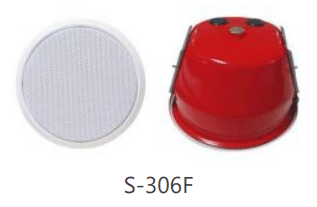

ELV Ceiling Speakers offer discreet, high-quality audio for indoor Public Address and background music systems. Designed for flush mounting in ceilings, models like the S-406C and S-306F provide wide sound dispersion for even coverage. Both feature robust steel construction and integrated 70V/100V transformers with multiple power taps. The S-306F is additionally certified to EN54-24, making it suitable for Voice Alarm applications requiring compliance.
Key Features
- Discreet Ceiling Installation: Flush-mount design blends seamlessly with ceiling tiles.
- Wide Sound Dispersion: Provides broad, even audio coverage suitable for general areas.
- Clear Audio Quality: Delivers good performance for both voice announcements and background music.
- Multiple Power Taps: Allows easy adjustment of speaker volume during installation (S-406C: 6/3/1.5W; S-306F: 6/3/1.5/0.75W @100V).
- Durable Steel Construction: Steel baffle and grille ensure longevity in commercial installations.
- Non-Flammable Driver Option: S-306F features a non-flammable driver.
- EN54-24 Certified Option: S-306F meets stringent requirements for use in certified Voice Alarm systems.
- Easy Spring-Clip Mounting: Facilitates quick installation.
Applications
Offices, retail stores, hotels, restaurants, hospitals, schools, airports, hallways, waiting areas – anywhere requiring wide, even audio coverage from a discreet ceiling-mounted source. The S-306F is specifically suited for EN54 compliant PA/VA systems.
System Compatibility
- Amplifiers: Compatible with any ELV 70V/100V amplifier output (A-XXXR series, A-XXXXD series).
- Volume Controls: Can be used with A-C30R (check power load per control), especially relevant in nonemergency BGM applications.
